SLOS193C February 1997 – July 2025 TLE2061 , TLE2061A , TLE2061AM , TLE2061BM , TLE2061M , TLE2062 , TLE2062A , TLE2062AM , TLE2062BM , TLE2062M , TLE2064 , TLE2064A , TLE2064AM , TLE2064BM , TLE2064M
PRODUCTION DATA
- 1
- 1 Features
- 2 Applications
- 3 Description
- 4 Available Options
-
5 Specifications
- 5.1 Absolute Maximum Ratings
- 5.2 Recommended Operating Conditions
- 5.3 TLE2061C Electrical Characteristics
- 5.4 TLE2061C Operating Characteristics
- 5.5 TLE2061C Electrical Characteristics
- 5.6 TLE2061C Operating Characteristics
- 5.7 TLE2061I Electrical Characteristics
- 5.8 TLE2061I Operating Characteristics
- 5.9 TLE2061I Electrical Characteristics
- 5.10 TLE2061I Operating Characteristics
- 5.11 TLE2061M Electrical Characteristics
- 5.12 TLE2061M Operating Characteristics
- 5.13 TLE2061M Electrical Characteristics
- 5.14 TLE2061M Operating Characteristics
- 5.15 TLE2061Y Electrical Characteristics
- 5.16 TLE2061Y Operating Characteristics
- 5.17 TLE2062C Electrical Characteristics
- 5.18 TLE2062C Operating Characteristics
- 5.19 TLE2062C Electrical Characteristics
- 5.20 TLE2062C Operating Characteristics
- 5.21 TLE2062I Electrical Characteristics
- 5.22 TLE2062I Operating Characteristics
- 5.23 TLE2062I Electrical Characteristics
- 5.24 TLE2062I Operating Characteristics
- 5.25 TLE2062M Electrical Characteristics
- 5.26 TLE2062M Operating Characteristics
- 5.27 TLE2062M Electrical Characteristics
- 5.28 TLE2062M Operating Characteristics
- 5.29 TLE2062Y Electrical Characteristics
- 5.30 TLE2062Y Operating Characteristics
- 5.31 TLE2064C Electrical Characteristics
- 5.32 TLE2064C Operating Characteristics
- 5.33 TLE2064C Electrical Characteristics
- 5.34 TLE2064C Operating Characteristics
- 5.35 TLE2064I Electrical Characteristics
- 5.36 TLE2064I Operating Characteristics
- 5.37 TLE2064I Electrical Characteristics
- 5.38 TLE2064I Operating Characteristics
- 5.39 TLE2064M Electrical Characteristics
- 5.40 TLE2064M Operating Characteristics
- 5.41 TLE2064M Electrical Characteristics
- 5.42 TLE2064M Operating Characteristics
- 5.43 TLE2064Y Electrical Characteristics
- 5.44 TLE2064Y Operating Characteristics
- 5.45 Typical Characteristics
- 5.46 Typical Characteristics
- 6 Parameter Measurement Information
- 7 Application and Implementation
- 8 Device and Documentation Support
- 9 Revision History
- 10Mechanical, Packaging, and Orderable Information
Package Options
Refer to the PDF data sheet for device specific package drawings
Mechanical Data (Package|Pins)
- FK|20
- JG|8
Thermal pad, mechanical data (Package|Pins)
Orderable Information

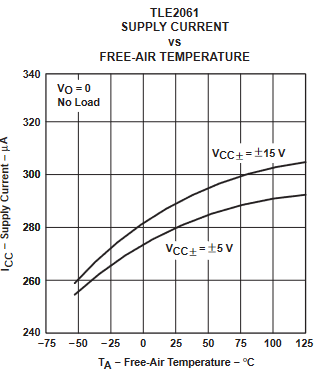

5.46 Typical Characteristics
