7.2.1.3 Application Curve

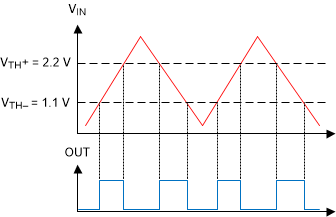

TLV1812-EP TLV1822-EP Window Comparator ResultsFigure 7-8 Window Comparator Results

For more information, see the Window comparator circuit application note.
