7.2.3 Application Curves

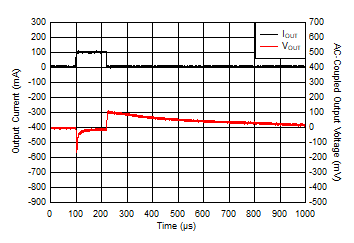

TLV761 IOUT Transient From 0 mA to 100 mA
VIN = 5 V, VOUT = 3.3 V, ramp rate = 0.4 A/µs
Figure 7-3 IOUT Transient From 0 mA to 100 mA
TLV761 IOUT Transient From 250 mA to 850 mA
VIN = 5 V, VOUT = 3.3 V, ramp rate = 0.8 A/µs
Figure 7-5 IOUT Transient From 250 mA to 850 mA
TLV761 VIN Transient From 5 V to 16 V
VOUT = 3.3 V, IOUT = 33 µA, VIN ramp rate = 1.6 V/µs
Figure 7-7 VIN Transient From 5 V to 16 V
TLV761 IOUT Transient From 1 mA to 1 A
VIN = 5 V, VOUT = 3.3 V, ramp rate = 0.5 A/µs
Figure 7-4 IOUT Transient From 1 mA to 1 A
TLV761 VIN Transient in Dropout From 4 V to 13 V
VIN = 5 V VOUT = 3.3 V, IOUT = 1 A, VIN ramp rate = 0.6 V/µs
Figure 7-6 VIN Transient in Dropout From 4 V to 13 V
TLV761 Inrush Current With 22 µF at COUT
IOUT = 0.1 A, COUT = 22 µF
Figure 7-8 Inrush Current With 22 µF at COUT
