7.9.7 Enhanced Controller Area Network (eCAN) Module

The CAN module (eCAN-A) has the following features:

  • Fully compliant with ISO11898-1 (CAN 2.0B)
  • Supports data rates up to 1 Mbps
  • Thirty-two mailboxes, each with the following properties:
    • Configurable as receive or transmit
    • Configurable with standard or extended identifier
    • Has a programmable receive mask
    • Supports data and remote frame
    • Composed of 0 to 8 bytes of data
    • Uses a 32-bit time stamp on receive and transmit message
    • Protects against reception of new message
    • Holds the dynamically programmable priority of transmit message
    • Employs a programmable interrupt scheme with two interrupt levels
    • Employs a programmable alarm on transmission or reception time-out
  • Low-power mode
  • Programmable wake-up on bus activity
  • Automatic reply to a remote request message
  • Automatic retransmission of a frame in case of loss of arbitration or error
  • 32-bit local network time counter synchronized by a specific message (communication in conjunction with mailbox 16)
  • Self-test mode
    • Operates in a loopback mode receiving its own message. A "dummy" acknowledge is provided, thereby eliminating the need for another node to provide the acknowledge bit.

Note:

For a SYSCLKOUT of 60 MHz, the smallest bit rate possible is 4.6875 kbps.

The F2803x CAN has passed the conformance test per ISO/DIS 16845. Contact TI for test report and exceptions.

For information on using the CAN module with the on-chip zero-pin oscillators, see MCU CAN Module Operation Using the On-Chip Zero-Pin Oscillator.

For more information on the CAN, see the Controller Area Network (CAN) chapter in the TMS320F2803x Real-Time Microcontrollers Technical Reference Manual.

GUID-040C870E-4FF6-4775-B1E0-41DB6C0D16E1-low.gifFigure 7-35 eCAN Block Diagram and Interface Circuit
Table 7-31 3.3-V eCAN Transceivers
PART NUMBERSUPPLY
VOLTAGE		LOW-POWER
MODE		SLOPE
CONTROL		VREFOTHERTA
SN65HVD2303.3 VStandbyAdjustableYes––40°C to 85°C
SN65HVD230Q3.3 VStandbyAdjustableYes––40°C to 125°C
SN65HVD2313.3 VSleepAdjustableYes––40°C to 85°C
SN65HVD231Q3.3 VSleepAdjustableYes––40°C to 125°C
SN65HVD2323.3 VNoneNoneNone––40°C to 85°C
SN65HVD232Q3.3 VNoneNoneNone––40°C to 125°C
SN65HVD2333.3 VStandbyAdjustableNoneDiagnostic Loopback–40°C to 125°C
SN65HVD2343.3 VStandby and SleepAdjustableNone––40°C to 125°C
SN65HVD2353.3 VStandbyAdjustableNoneAutobaud Loopback–40°C to 125°C
ISO10503–5.5 VNoneNoneNoneBuilt-in Isolation
Low Prop Delay
Thermal Shutdown
Failsafe Operation
Dominant Time-Out		–55°C to 105°C

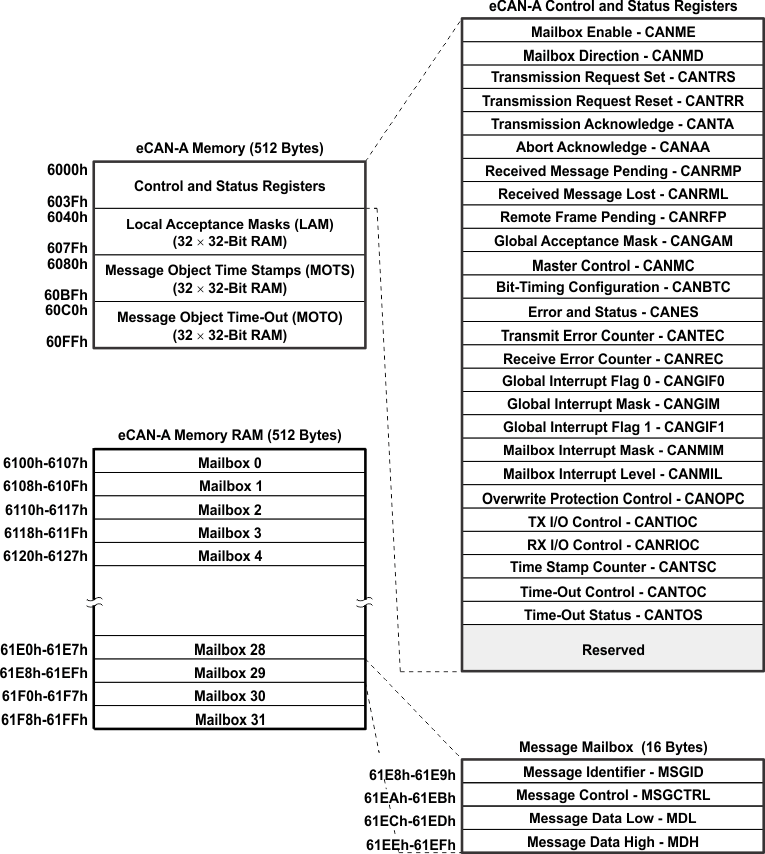

GUID-928E3886-34D2-4FB4-A22A-921D2187B7F8-low.gifFigure 7-36 eCAN-A Memory Map
Note:

If the eCAN module is not used in an application, the RAM available (LAM, MOTS, MOTO, and mailbox RAM) can be used as general-purpose RAM. The CAN module clock should be enabled for this.

The CAN registers listed in Table 7-32 are used by the CPU to configure and control the CAN controller and the message objects. eCAN control registers only support 32-bit read/write operations. Mailbox RAM can be accessed as 16 bits or 32 bits. 32-bit accesses are aligned to an even boundary.

Table 7-32 CAN Register Map
REGISTER NAME(1)eCAN-A
ADDRESS		SIZE (x32)DESCRIPTION
CANME0x60001Mailbox enable
CANMD0x60021Mailbox direction
CANTRS0x60041Transmit request set
CANTRR0x60061Transmit request reset
CANTA0x60081Transmission acknowledge
CANAA0x600A1Abort acknowledge
CANRMP0x600C1Receive message pending
CANRML0x600E1Receive message lost
CANRFP0x60101Remote frame pending
CANGAM0x60121Global acceptance mask
CANMC0x60141Master control
CANBTC0x60161Bit-timing configuration
CANES0x60181Error and status
CANTEC0x601A1Transmit error counter
CANREC0x601C1Receive error counter
CANGIF00x601E1Global interrupt flag 0
CANGIM0x60201Global interrupt mask
CANGIF10x60221Global interrupt flag 1
CANMIM0x60241Mailbox interrupt mask
CANMIL0x60261Mailbox interrupt level
CANOPC0x60281Overwrite protection control
CANTIOC0x602A1TX I/O control
CANRIOC0x602C1RX I/O control
CANTSC0x602E1Time stamp counter (Reserved in SCC mode)
CANTOC0x60301Time-out control (Reserved in SCC mode)
CANTOS0x60321Time-out status (Reserved in SCC mode)
(1) These registers are mapped to Peripheral Frame 1.
