7.9.4.2.2 SPI Slave Mode External Timing (Clock Phase = 1)
NO. PARAMETER(1)(2)(3)(4) MIN MAX UNIT
12 tc(SPC)S Cycle time, SPICLK 4tc(SYSCLK) ns
13 tw(SPC1)S Pulse duration, SPICLK first pulse 2tc(SYSCLK) – 1 ns
14 tw(SPC2)S Pulse duration, SPICLK second pulse 2tc(SYSCLK) – 1 ns
17 td(SOMI)S Delay time, SPICLK to SPISOMI valid 21 ns
18 tv(SOMI)S Valid time, SPISOMI data valid after SPICLK 0 ns
21 tsu(SIMO)S Setup time, SPISIMO valid before SPICLK 1.5tc(SYSCLK) ns
22 th(SIMO)S Hold time, SPISIMO data valid after SPICLK 1.5tc(SYSCLK) ns
25 tsu(STE)S Setup time, SPISTE active before SPICLK 1.5tc(SYSCLK) ns
26 th(STE)S Hold time, SPISTE inactive after SPICLK 1.5tc(SYSCLK) ns
(1) The MASTER / SLAVE bit (SPICTL.2) is cleared and the CLOCK PHASE bit (SPICTL.3) is cleared.
(2) tc(SPC) = SPI clock cycle time = LSPCLK/4 or LSPCLK/(SPIBRR + 1)
(3) Internal clock prescalers must be adjusted such that the SPI clock speed is limited to the following SPI clock rate:
Master mode transmit 25-MHz MAX, master mode receive 12.5-MHz MAX
Slave mode transmit 12.5-MHz MAX, slave mode receive 12.5-MHz MAX.
(4) The active edge of the SPICLK signal referenced is controlled by the CLOCK POLARITY bit (SPICCR.6).

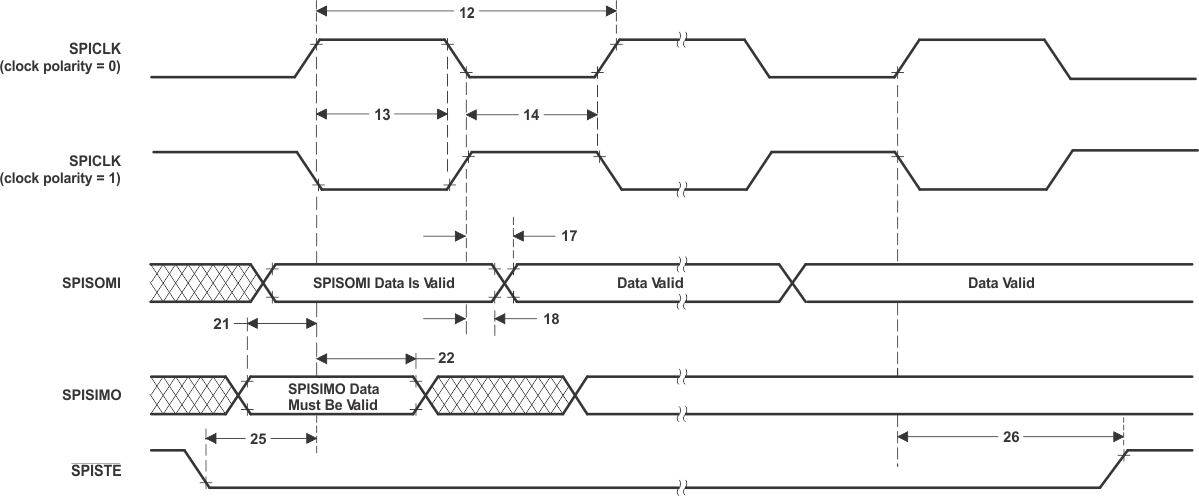

GUID-A537ED35-E4E6-41E3-95E9-8835E6423B47-low.gif Figure 7-32 SPI Slave Mode External Timing (Clock Phase = 1)
