8.9.2.1.2.5.1 ADC Power-Up Delays
PARAMETER(1)MINMAXUNIT
td(PWD)Delay time for the ADC to be stable after power up1ms
(1) Timings maintain compatibility to the ADC module. The 2805x ADC supports driving all 3 bits at the same time td(PWD) ms before first conversion.

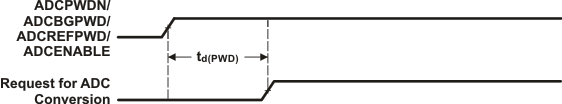

GUID-39011C24-EFFB-4B5F-859B-E682137BBBC6-low.gifFigure 8-18 ADC Conversion Timing

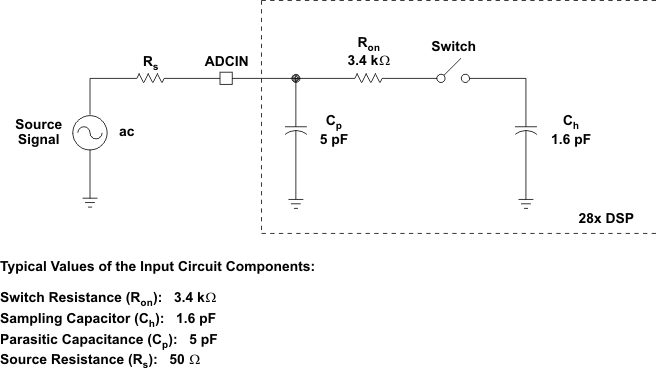

GUID-EEF34B8A-7E5A-40FB-BA68-7027F6710BCB-low.gifFigure 8-19 ADC Input Impedance Model
