SCDS401C December   2018  – February 2024 TMUX1119

PRODUCTION DATA

  1.   1
  2. 1 Features
  3. 2 Applications
  4. 3 Description
  5. 4 Pin Configuration and Functions
  6. 5 Specifications
    1. 5.1 Absolute Maximum Ratings
    2. 5.2 ESD Ratings
    3. 5.3 Recommended Operating Conditions
    4. 5.4 Thermal Information
    5. 5.5 Electrical Characteristics (VDD = 5V ±10 %)
    6. 5.6 Electrical Characteristics (VDD = 3.3V ±10 %)
    7. 5.7 Electrical Characteristics (VDD = 1.8V ±10 %)
    8. 5.8 Electrical Characteristics (VDD = 1.2V ±10 %)
    9.     Typical Characteristics
  7. 6 Parameter Measurement Information
    1. 6.1 On-Resistance
    2. 6.2 Off-Leakage Current
    3. 6.3 On-Leakage Current
    4. 6.4 Transition Time
    5. 6.5 Break-Before-Make
    6. 6.6 Charge Injection
    7. 6.7 Off Isolation
    8. 6.8 Crosstalk
    9. 6.9 Bandwidth
  8. 7 Detailed Description
    1. 7.1 Overview
    2. 7.2 Functional Block Diagram
    3. 7.3 Feature Description
      1. 7.3.1 Bidirectional Operation
      2. 7.3.2 Rail to Rail Operation
      3. 7.3.3 1.8V Logic Compatible Inputs
      4. 7.3.4 Fail-Safe Logic
      5. 7.3.5 Ultra-Low Leakage Current
      6. 7.3.6 Ultra-Low Charge Injection
    4. 7.4 Device Functional Modes
    5. 7.5 Truth Tables
  9. 8 Application and Implementation
    1. 8.1 Application Information
    2. 8.2 Typical Application
      1. 8.2.1 Design Requirements
      2. 8.2.2 Detailed Design Procedure
      3. 8.2.3 Application Curve
    3. 8.3 Power Supply Recommendations
    4. 8.4 Layout
      1. 8.4.1 Layout Guidelines
      2. 8.4.2 Layout Example
  10. 9 Device and Documentation Support
    1. 9.1 Documentation Support
      1. 9.1.1 Related Documentation
    2. 9.2 Receiving Notification of Documentation Updates
    3. 9.3 Support Resources
    4. 9.4 Trademarks
    5. 9.5 Electrostatic Discharge Caution
    6. 9.6 Glossary
  11. 10Revision History
  12. 11Mechanical, Packaging, and Orderable Information

Package Options

Mechanical Data (Package|Pins)
Thermal pad, mechanical data (Package|Pins)
Orderable Information

Abstract

at TA = 25°C, VDD = 5V (unless otherwise noted)

TA = 25°C
Figure 5-1 On-Resistance vs Source or Drain Voltage
VDD = 3.3V
Figure 5-3 On-Resistance vs Temperature
TA = 25°C
Figure 5-5 On-Leakage vs Source or Drain Voltage
VDD = 3.3V

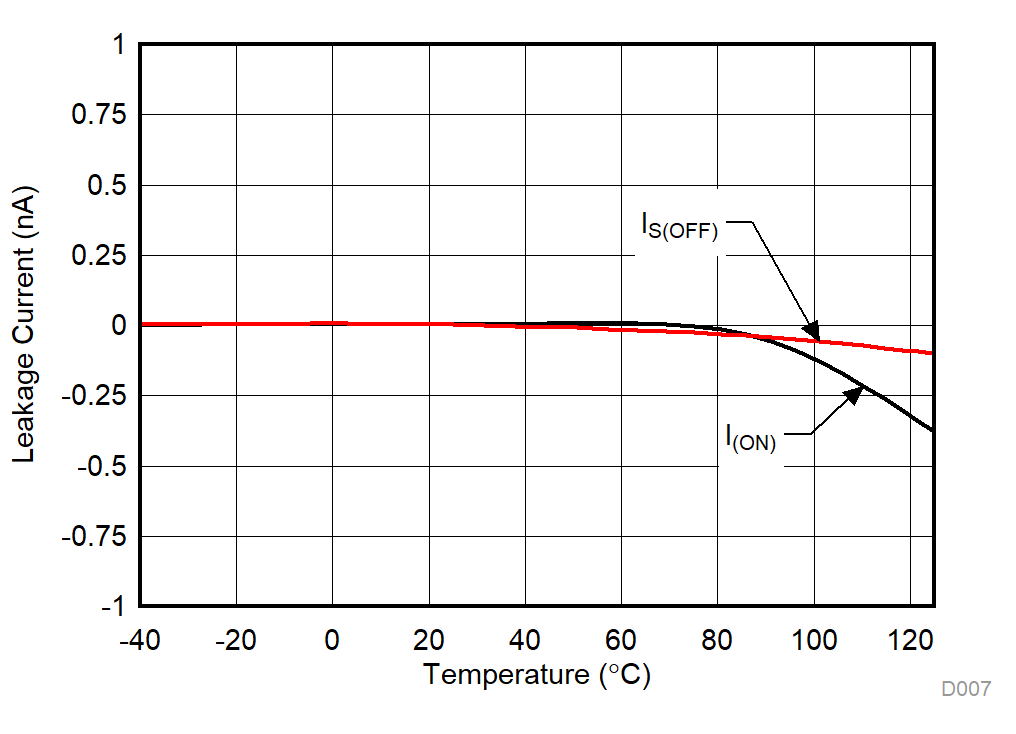

Figure 5-7 Leakage Current vs Temperature
VSEL = 5.5V

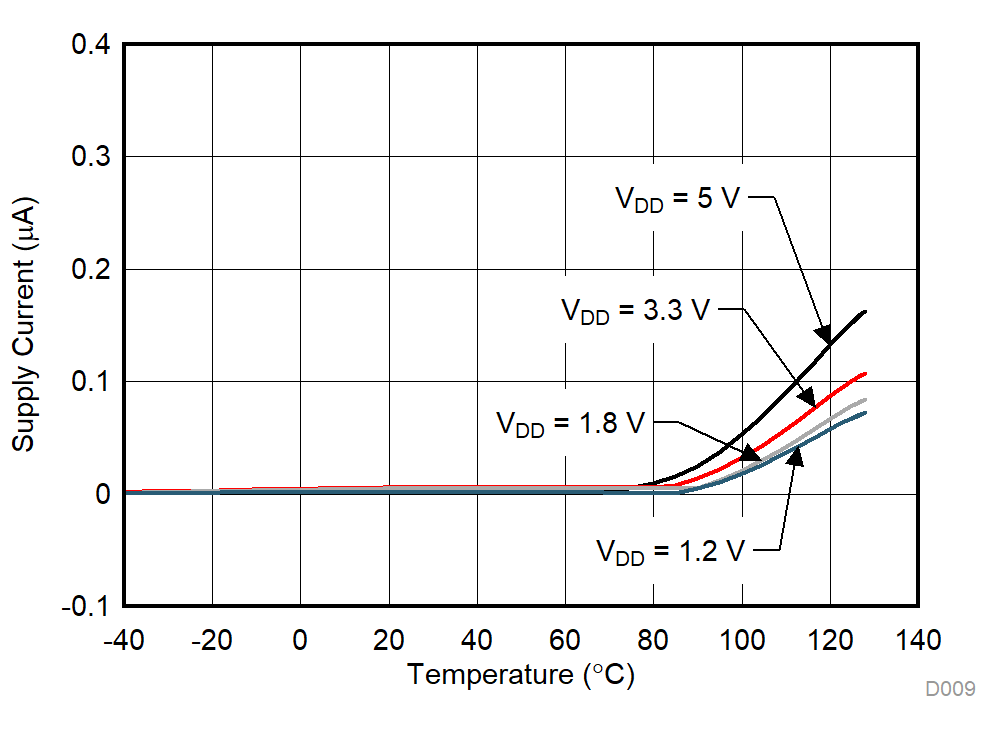

Figure 5-9 Supply Current vs Temperature
TA = -40°C to 125°C
Figure 5-11 Charge Injection vs Drain Voltage
TA = 25°C

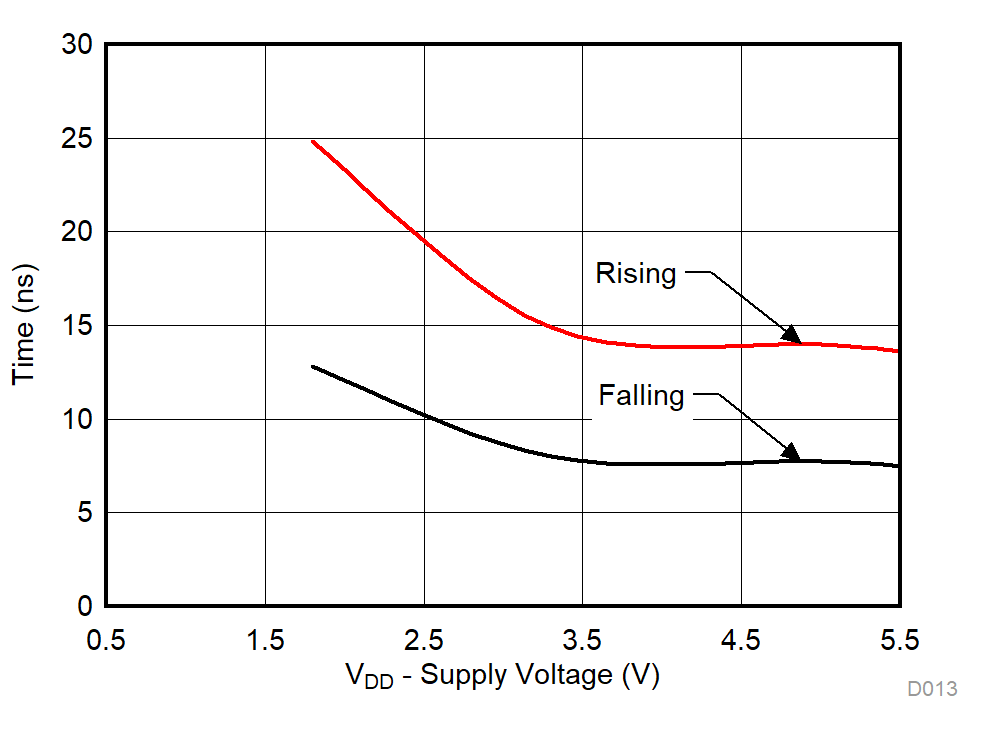

Figure 5-13 Output TTRANSITION vs Supply Voltage
TA = 25°C

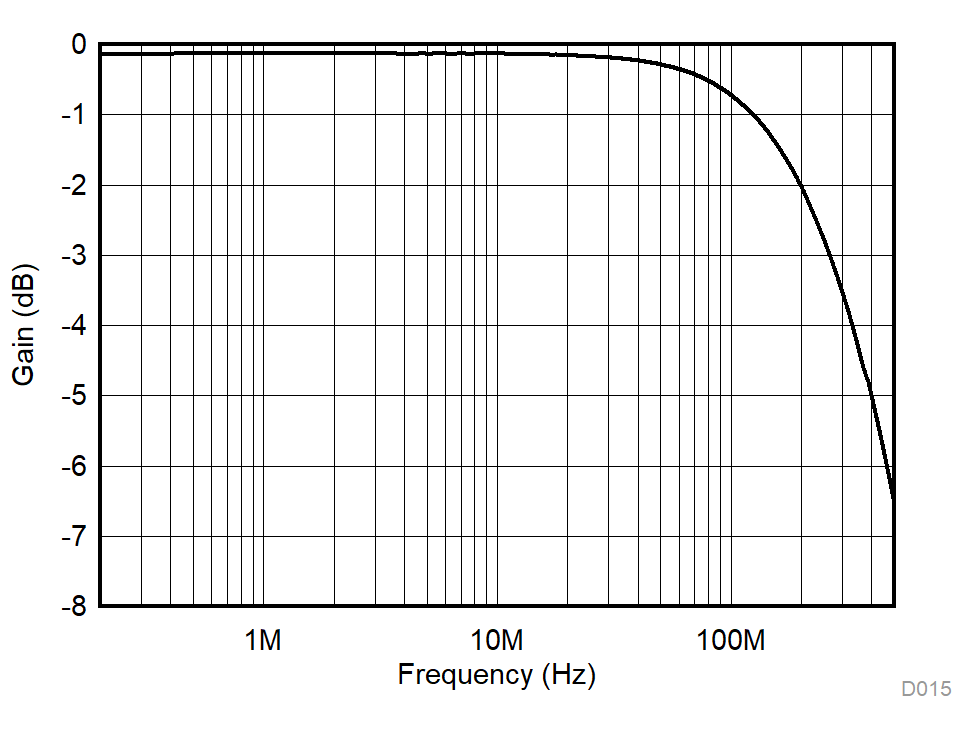

Figure 5-15 On Response vs Frequency
VDD = 5V
Figure 5-2 On-Resistance vs Temperature
TA = 25°C
Figure 5-4 On-Resistance vs Source or Drain Voltage
VDD = 5V
Figure 5-6 On-Leakage vs Source or Drain Voltage
VDD = 5V
Figure 5-8 Leakage Current vs Temperature
TA = 25°C
Figure 5-10 Supply Current vs Logic Voltage
TA = -40°C to 125°C
Figure 5-12 Charge Injection vs Drain Voltage
TA = 25°C
Figure 5-14 Xtalk and Off-Isolation vs Frequency
