12 Layout

12.1 Layout Guidelines

It is important to keep the TPA6204A1 external components very close to the TPA6204A1 to limit noise pickup.

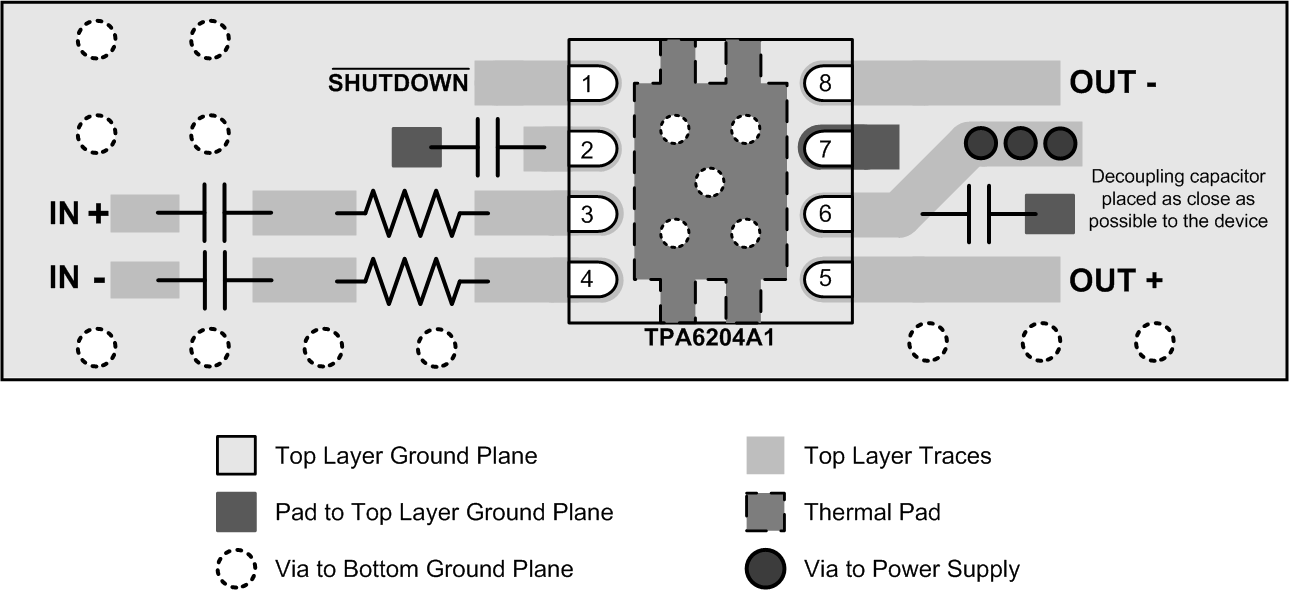

12.2 Layout Example

TPA6204A1 TPA6204A1_LayoutExample.gif Figure 20. TPA6204A1 Layout Recommendation
