7.8 Typical DC Characteristics

TPS22968 TPS22968N D051_SLVSCG3.gif
VIN1 = VIN2 = VBIAS VOUT = Open
VON1 = VON2 = 5 V
Figure 1. Bias Voltage vs Quiescent Current
(Both Channels)

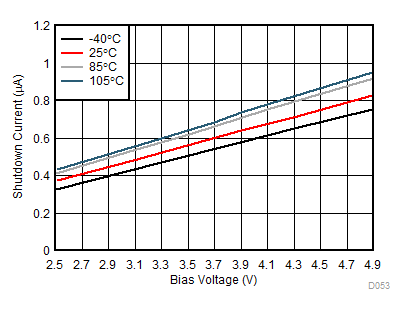

TPS22968 TPS22968N D053_SLVSCG3.gif
VIN1 = VIN2 = VBIAS VOUT = 0 V
VON1 = VON2 = 0 V
Figure 3. Bias Voltage vs Shutdown Current
(Both Channels)

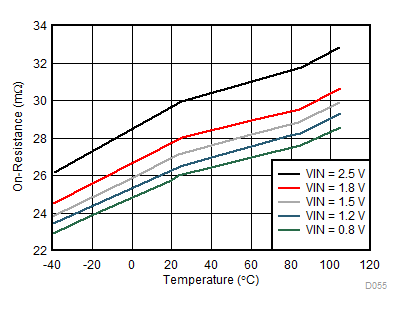

TPS22968 TPS22968N D055_SLVSCG3.gif
VBIAS = 2.5 V
IOUT = –200 mA
Figure 5. Temperature vs On-Resistance

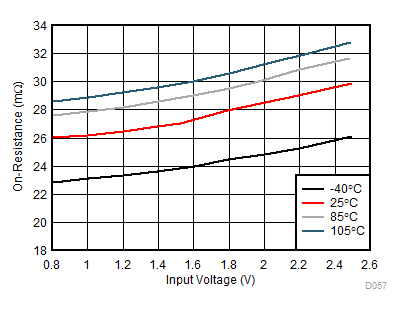

TPS22968 TPS22968N D057_SLVSCG3.gif
VBIAS = 2.5 V
IOUT = –200 mA
Figure 7. Input Voltage vs On-Resistance

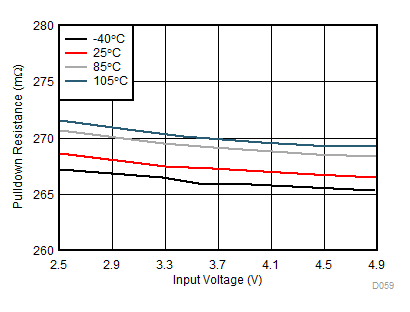

TPS22968 TPS22968N D059_SLVSCG3.gif
VBIAS = 5 V IOUT = 1 mA
VON = 0 V
Figure 9. Input Voltage vs Pulldown Resistance (TPS22968 Only)
(Single Channel)

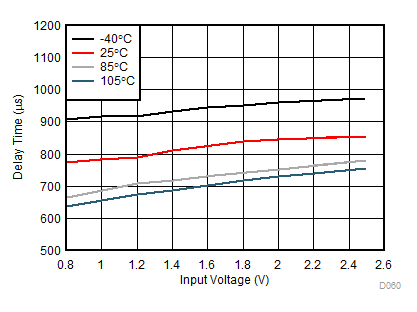

TPS22968 TPS22968N D060_SLVSCG3.gif
VBIAS = 2.5 V
CT= 1 nF
Figure 11. Input Voltage vs Delay Time

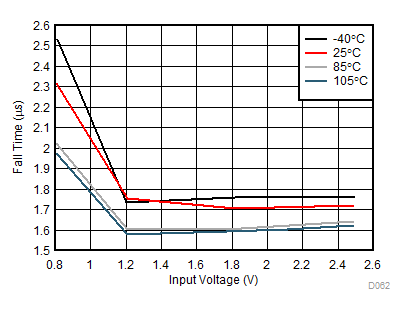

TPS22968 TPS22968N D062_SLVSCG3.gif
VBIAS = 2.5 V
CT = 1 nF
Figure 13. Input Voltage vs Fall Time

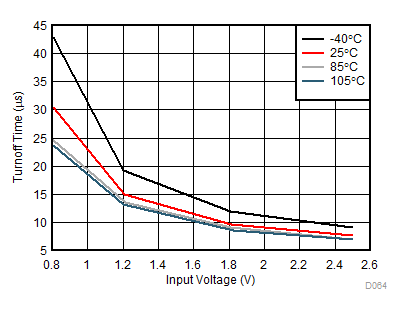

TPS22968 TPS22968N D064_SLVSCG3.gif
VBIAS = 2.5 V
CT = 1 nF
Figure 15. Input Voltage vs Turnoff Time

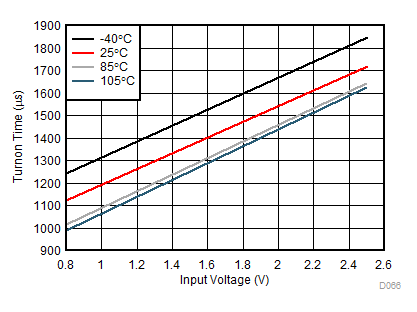

TPS22968 TPS22968N D066_SLVSCG3.gif
VBIAS = 2.5 V
CT = 1 nF
Figure 17. Input Voltage vs Turnon Time

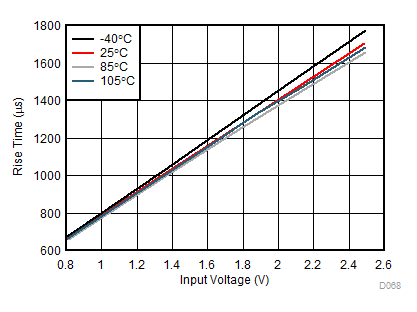

TPS22968 TPS22968N D068_SLVSCG3.gif
VBIAS = 2.5 V
CT = 1 nF
Figure 19. Input Voltage vs Rise Time

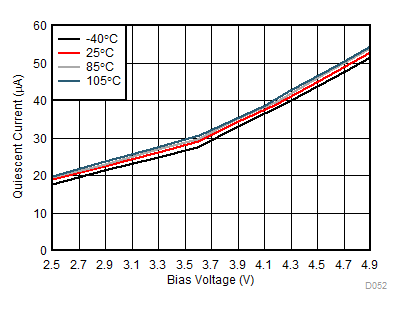

TPS22968 TPS22968N D052_SLVSCG3.gif
VIN1 = VIN2 = VBIAS VON2 = 0 V
VON1 = 5 V VOUT = Open
Figure 2. Bias Voltage vs Quiescent Current
(Single Channel)

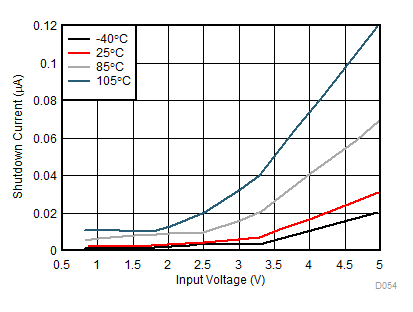

TPS22968 TPS22968N D054_SLVSCG3.gif
VBIAS = 5 V VOUT = 0 V
VON1 = VON2 = 0 V
Figure 4. Input Voltage vs Shutdown Current

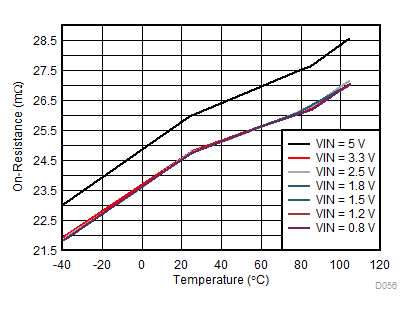

TPS22968 TPS22968N D056_SLVSCG3.gif
VBIAS = 5 V
IOUT = –200 mA
Figure 6. Temperature vs On-Resistance

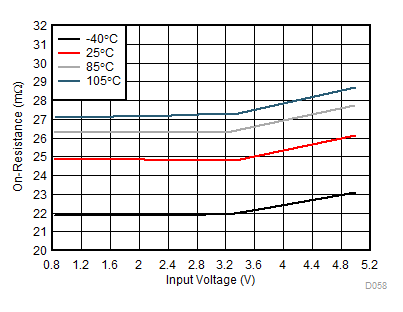

TPS22968 TPS22968N D058_SLVSCG3.gif
VBIAS = 5 V
IOUT = –200 mA
Figure 8. Input Voltage vs On-Resistance

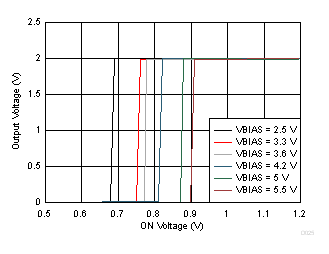

TPS22968 TPS22968N D025_SLVSCG3E.gif
TA = 25°C
VIN = 2 V
Figure 10. ON Voltage vs Output Voltage

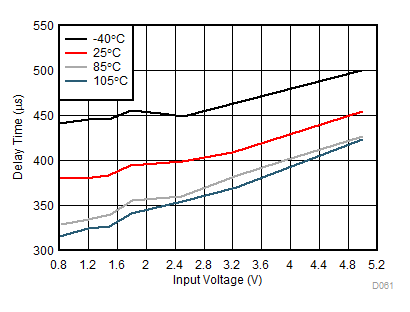

TPS22968 TPS22968N D061_SLVSCG3.gif
VBIAS = 5 V
CT = 1 nF
Figure 12. Input Voltage vs Delay Time

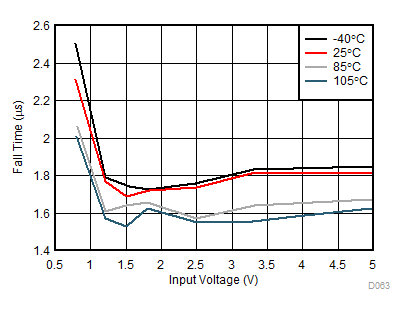

TPS22968 TPS22968N D063_SLVSCG3.gif
VBIAS = 5 V
CT = 1 nF
Figure 14. Input Voltage vs Fall Time

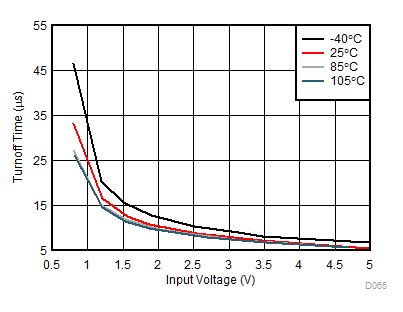

TPS22968 TPS22968N D065_SLVSCG3.gif
VBIAS = 5 V
CT = 1 nF
Figure 16. Input Voltage vs Turnoff Time

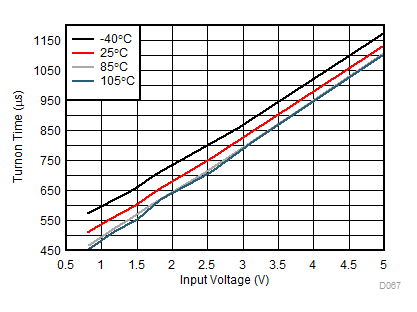

TPS22968 TPS22968N D067_SLVSCG3.gif
VBIAS = 5 V
CT = 1 nF
Figure 18. Input Voltage vs Turnon Time

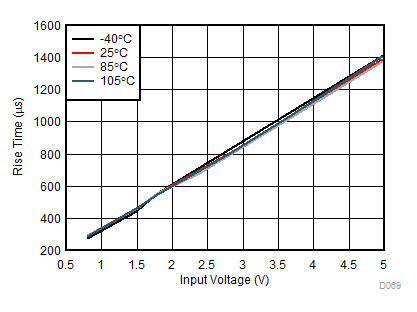

TPS22968 TPS22968N D069_SLVSCG3.gif
VBIAS = 5 V
CT = 1 nF
Figure 20. Input Voltage vs Rise Time
