10.2.3 Application Curves

Table 10-3 Table of Graphs
FIGURE
ηEfficiencyLoad Current, VOUT = 1.2 V, Auto PFM and PWM Mode, Linear ScaleFigure 10-3
Load Current, VOUT = 1.8 V, Auto PFM and PWM Mode, Linear ScaleFigure 10-4
Load Current, VOUT = 3.3 V, PFM and PWM Mode, Linear ScaleFigure 10-5
Load Current, VOUT = 1.8 V, Auto PFM and PWM Mode vs. Forced PWM Mode, Logarithmic ScaleFigure 10-6
Output Voltage AccuracyLoad Current, VOUT = 1.8 V, Auto PFM and PWM ModeFigure 10-7
Load Current, VOUT = 1.8 V, Forced PWM ModeFigure 10-8
Typical OperationPWM Mode, VIN = 3.6 V, VOUT = 1.8 V, 500 mA, L = 1.2 μH, COUT = 10 μFFigure 10-9
PFM Mode, VIN = 3.6 V, VOUT = 1.8 V, 20 mA, L = 1.2 μH, COUT = 10 μFFigure 10-10
Load TransientPWM Mode, VIN = 3.6 V, VOUT = 1.2 V, 0.2 mA to 1 AFigure 10-11
PFM Mode, VIN = 3.6 V, VOUT = 1.2 V, 20 mA to 250 mAFigure 10-12
VIN = 3.6 V, VOUT = 1.8 V, 200 mA to 1500 mAFigure 10-13
Line TransientPWM Mode, VIN = 3.6 V to 4.2 V, VOUT = 1.8 V, 500 mAFigure 10-14
PFM Mode, VIN = 3.6 V to 4.2 V, VOUT = 1.8 V, 500 mAFigure 10-15
Start-Up into LoadVIN = 3.6 V, VOUT = 1.8 V, Load = 2.2 ΩFigure 10-16
Start-Up TPS62067-Q1Into 2.2-Ω Load with Power GoodFigure 10-17
Output DischargeVIN = 3.6 V, VOUT = 1.8 V, No LoadFigure 10-18
Shutdown TPS62067-Q1VIN = 4.2 V, VOUT = 3.3 V, No Load, PG Pullup Resistor 10 kΩFigure 10-19
VOUT = 1.2 VLinear Scale
L = 1.2 µH (NRG4026T 1R2)COUT = 10 µF (0603 size)
Figure 10-3 Efficiency vs Load Current Auto PFM and PWM MODE
VOUT = 3.3 VLinear Scale
L = 1.2 µH (NRG4026T 1R2)COUT = 22 µF (0603 size)
Figure 10-5 Efficiency vs Load Current Auto PFM and PWM MODE
L = 1 µHVOUT = 1.8 VCOUT = 10 µF
Figure 10-7 Output Voltage Accuracy vs Load Current Auto PFM and PWM MODE
VIN = 3.6 VVOUT = 1.8 VMODE = GND
COUT = 10 µFL = 1.2 µHIOUT = 500 mA

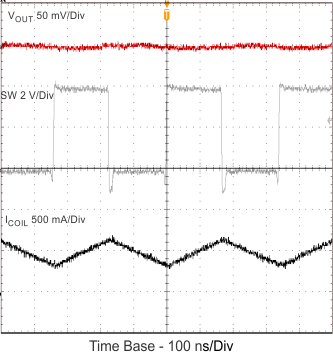

Figure 10-9 Typical Operation (PWM Mode)
VIN = 3.6 VVOUT = 1.2 VIOUT = 0.2 to 1 A

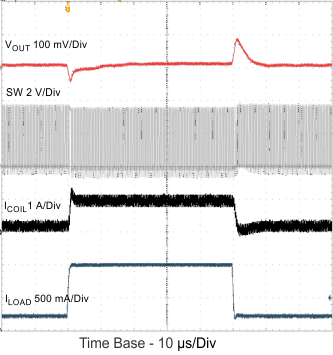

Figure 10-11 Load Transient Response, MODE = VIN PWM Mode 0.2 A to 1 A
VIN = 3.6 VVOUT = 1.8 VL = 1.2 µH
COUT = 10 µF

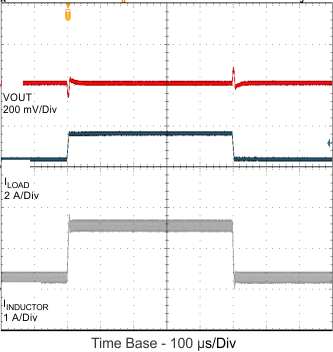

Figure 10-13 Load Transient Response 200 mA To 1500 mA
VIN = 3.6 to 4.2 VVOUT = 1.8 VIOUT = 50 mA
COUT = 10 µFL = 1.2 µH
Figure 10-15 Line Transient PFM Mode
VIN = 4.2 VVOUT = 3.3 VLoad = 2R2
PG Pullup resistor 10 kΩ
Figure 10-17 Start-Up TPS62067-Q1 into 2.2-Ω Load With Power Good
VIN = 4.2 VVOUT = 3.3 VNo load
PG pullup resistor, 10 kΩ

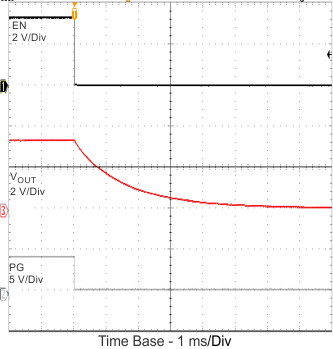

Figure 10-19 Shutdown TPS62067-Q1
VOUT = 1.8 VLinear Scale
L = 1.2 µH (NRG4026T 1R2)COUT = 10 µF (0603 size)

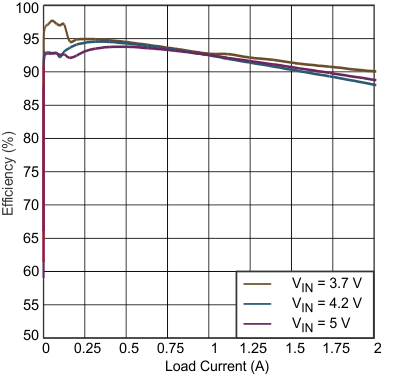

Figure 10-4 Efficiency vs Load Current PFM and PWM MODE
VOUT = 1.8 VLogarithmic Scale
COUT = 10 µF (0603 size)L = 1.2 µH (NRG4026T 1R2)
Figure 10-6 Efficiency vs Load Current Auto PFM and PWM Mode vs. Forced PWM Mode
L = 1 µHVOUT = 1.8 VCOUT = 10 µF

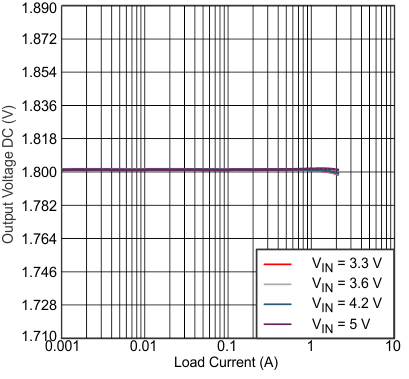

Figure 10-8 Output Voltage Accuracy vs Load Current Forced PWM MODE
VIN = 3.6 VVOUT = 1.8 VMODE = GND
COUT = 10 µFL = 1.2 µHIOUT = 20 mA

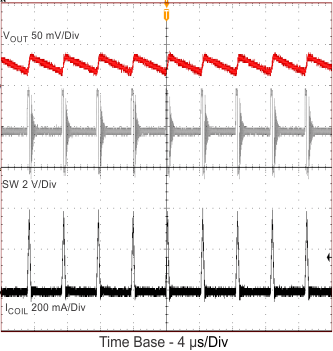

Figure 10-10 Typical Operation (PFM Mode)
VIN = 3.6 VVOUT = 1.8 VIOUT = 20 to 750 mA
Figure 10-12 Load Transient PFM Mode 20 mA to 750 mA
VIN = 3.6 to 4.2 VVOUT = 1.8 VIOUT = 500 mA
COUT = 10 µFL = 1.2 µH

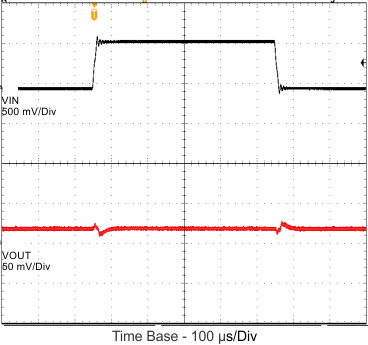

Figure 10-14 Line Transient Response PWM Mode
VIN = 3.6 VVOUT = 1.8 VLoad = 2R2
COUT = 10 µFL = 1.2 µH
Figure 10-16 Start-Up Into Load
VIN = 3.6 VVOUT = 1.8 VNo load
COUT = 1.8 µF
Figure 10-18 Output Discharge
