8.5.4 I2C Update Sequence

The sequence requires a start condition, a valid I2C slave address, a register address byte, and a data byte for a single update. After the receipt of each byte, the device acknowledges by pulling the SDA line low during the high period of a single clock pulse. A valid I2C address selects the device. The device performs an update on the falling edge of the acknowledge signal that follows the LSB byte.

GUID-82F52A13-8EBD-4054-B993-6907AF5B657C-low.gifFigure 8-6 “Write” Data Transfer Format in Standard-, Fast, and Fast-Plus Modes

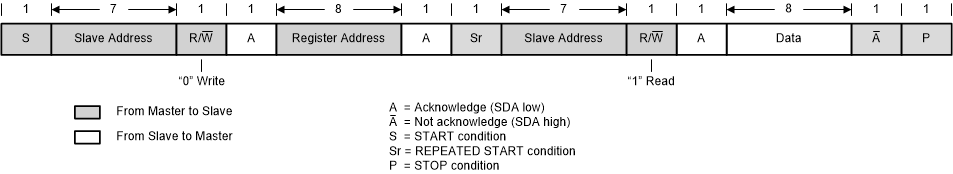

GUID-6E63707C-C139-48BE-A010-1C1FF7D64435-low.gifFigure 8-7 “Read” Data Transfer Format in Standard-, Fast, and Fast-Plus Modes
GUID-3B01E0A7-EF63-4263-9BD5-6296AF3ACFEE-low.gifFigure 8-8 Data Transfer Format in HS-Mode
