9.2.1.3 Application Curves

VIN = 5.0 V, VOUT = 0.9 V, TA = 25°C, BOM = Table 9-2, unless otherwise noted.
VIN = 5.0 V, VOUT = 0.9 V, TA = 25°C, BOM = Table 9-2, unless otherwise noted.GUID-4704335E-FAB3-4FA1-95CB-2AEF4F587A70-low.gif
VOUT = 0.6 V Power Save Mode
Figure 9-2 Efficiency. VIN = 5.0 V, VOUT = 0.9 V, TA = 25°C, BOM = Table 9-2, unless otherwise noted.
VOUT = 0.9 V
Figure 9-4 Efficiency
VOUT = 1.2 V Power Save Mode
Figure 9-6 Efficiency
VIN = 5.0 V

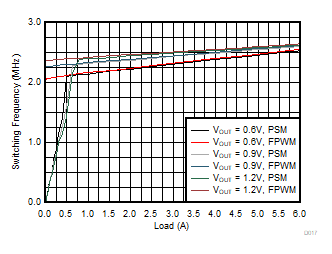

Figure 9-8 Switching Frequency
VOUT = 0.9 VθJA = 56.5°C/W
Figure 9-10 Thermal Derating
IOUT = 6.0 A
Figure 9-12 PWM Operation
IOUT = 0.1 A
Figure 9-14 Forced PWM Operation
No Load
Figure 9-16 Start-up by Software Enable Device Bit
IOUT = 0.05 A to 4 APSM
Figure 9-18 Load Transient
IOUT = 2.5 ATPS62866
Figure 9-20 HICCUP Protection
VOUT = 0.6 V Power Save Mode
Figure 9-3 Load Regulation
VOUT = 0.9 V
Figure 9-5 Load Regulation
VOUT = 1.2 V Power Save Mode
Figure 9-7 Load Regulation
IOUT = 1.0 A
Figure 9-9 Switching Frequency
VOUT = 1.675 VθJA = 56.5°C/W
Figure 9-11 Thermal Derating
IOUT = 0.1 A
Figure 9-13 PSM Operation
No Load
Figure 9-15 Startup and Shutdown by EN Pin
IOUT = 1 AVOUT = 0.9 V to 1.1 V
Figure 9-17 VOUT Transition with Different Slew Rate Settings
IOUT = 0.05 A to 4 AForced PWM
Figure 9-19 Load Transient
