1 Features

  • High-Efficiency Buck Converter
    • Output Current up to 500 mA
    • Output Voltage Selectable: 0.9 V to 1.95 V
  • Dual Flash LED Driver
    • High-Efficiency Boost Converter
      • Adaptive Output Voltage Regulation Based on LED Vf
    • Low Side LED Current Drivers
      • Two 1-A Current Drivers
      • LED Temperature Monitoring
      • Open/Short LED Detection/Protection
      • Controlled LED Current Ramp-Up/Down
  • Linear Regulator for Sensor Analog Supply
    • Output Voltage Programmable from 0.875 V to 3.1 V with 17.8-mV Steps
    • Output Current up to 200 mA
  • Linear Regulator for IO Supply
    • Output Voltage Programmable from 0.875 V to 3.1 V with 17.8-mV Steps
    • Output Current up to 50 mA
  • Linear Regulator for VCM (Voice Coil Motor) Driver Power
    • Output Voltage Programmable from 0.875 V to 3.1 V with 17.8-mV Steps
    • Output Current up to 500 mA
  • Linear Regulator for Auxiliary Power
    • Output Voltage Programmable from 0.875 V to 3.1 V with 17.8-mV Steps
    • Output Current up to 150 mA
  • Linear Regulator for Auxiliary Power
    • Output Voltage Programmable from 0.875 V to 3.1 V with 17.8-mV Steps
    • Output Current up to 50 mA
  • Linear Regulator for Sensor IO Supply
    • Output Voltage Programmable from 0.875 V to 3.1 V with 17.8-mV Steps
    • Output Current up to 150 mA
  • Clock Generation
    • Programmable PLL
    • Crystal Oscillator
  • I2C Interface
  • 7 GPIOs
  • System Reset
  • Operating Temperature Range: 0°C to 85°C
  • DSBGA with Package Height of 0.625 mm

2 Applications

  • Detachable Ultrabooks
  • Tablets
  • Smartphones
  • Compact Camera Modules (CCM)

3 Description

The TPS68470 device is an advanced power management unit that powers a Compact Camera Module (CCM), generates the clock for the image sensor, drives a dual LED for Flash and incorporates two LED drivers for general purpose indicators . The TPS68470 is capable of generating all needed power rails in a CCM.

The CORE voltage regulator is a state of the art buck converter which can be used for the image sensor digital supply. An LDO (LDO_ANA) can be used for the image sensor analog supply.

The TPS68470 also has a high efficiency boost converter to support two 1A LED flash drivers. The LED currents are controlled with regulated low side current sources.

Device Information(1)

PART NUMBER PACKAGE BODY SIZE (NOM)
TPS68470 DSBGA (56) 3.325 mm x 2.930 mm
  1. For all available packages, see the orderable addendum at the end of the data sheet.

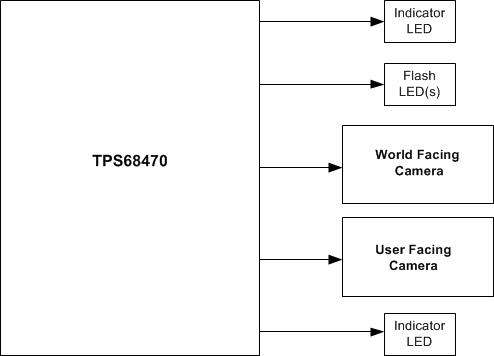

Application Diagram

TPS68470 Sys_Blk.gif

4 Revision History

Changes from A Revision (March 2015) to B Revision

  • Changed LDO_AUX2 Max output current from 50 mA to 80 mA Go

Changes from * Revision (September 2014) to A Revision

  • Added Storage temperature to Absolute Maximum RatingsGo
  • Changed Handling Ratings to ESD Ratings Go
  • Deleted Storage temperature from ESD Ratings Go
