6.7 Typical Characteristics

at operating temperature range TJ = 25°C, VIN = VOUT(NOM) + 0.5 V or 1.5 V (whichever is greater), IOUT = 1 mA, VEN = VIN, and CIN = COUT = 1 µF (unless otherwise noted)

VOUT = 0.55 V, IOUT = 1 mA

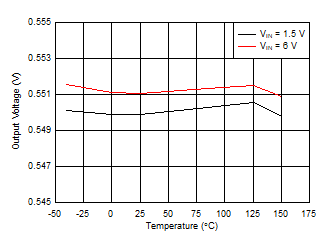

Figure 6-1 Output Voltage vs Ambient Temperature
VOUT = 5 V, IOUT = 1 mA
Figure 6-3 Output Voltage vs Ambient Temperature
0.65-V, 3.3-V, and 5-V options, IOUT = 1 mA
Figure 6-5 Temperature Drift Histogram (25°C to 150°C)
VOUT = 0.55 V, IOUT = 1 mA

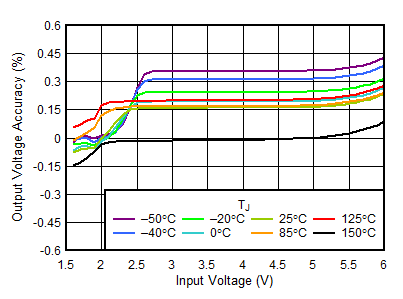

Figure 6-7 0.55-V Line Regulation vs VIN

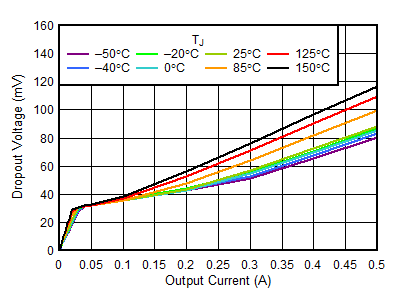

Figure 6-9 3.3-V Dropout Voltage vs IOUT

Figure 6-11 5.5-V Dropout Voltage vs IOUT

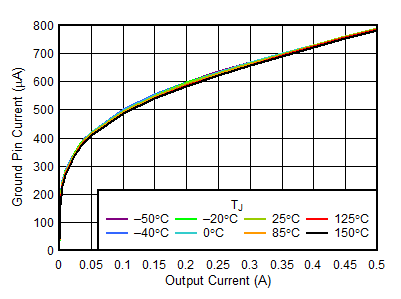

Figure 6-13 IGND vs IOUT

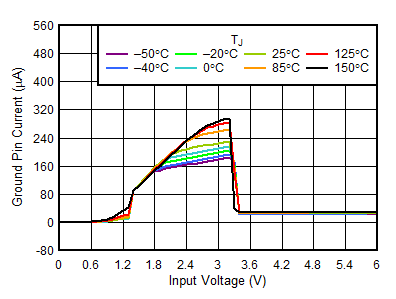

VOUT = 3.3 V, IOUT = 0 mA
Figure 6-15 IQ vs VIN
VIN = 2 V, VOUT = 0.55 V
Figure 6-17 0.55-V Load Regulation vs IOUT

Figure 6-19 VOUT vs IOUT Pulldown Resistor

Figure 6-21 IIkg(PG) vs Temperature and PG Pin Voltage
VIN = 1.5 V, VOUT = 0.55 V
Figure 6-23 VOL(PG) vs PG Pin Sink Current
B version
Figure 6-25 tPGDH vs Temperature (For TPS746B Only)

Figure 6-27 VEN(HI) and VEN(LO) vs Temperature

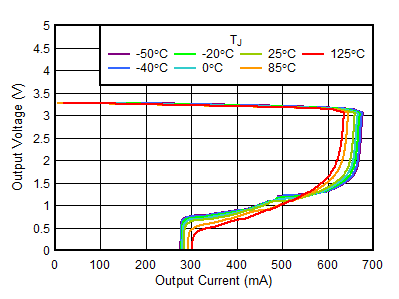

Figure 6-29 3.3-V VOUT vs IOUT

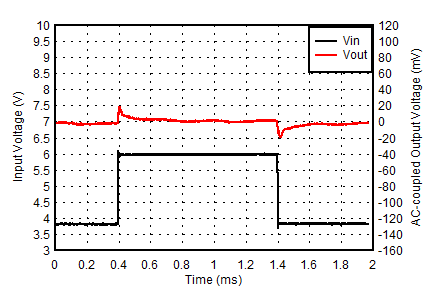

VOUT = 3.3 V, IOUT = 1 mA, VIN slew rate = 1 V/µs
Figure 6-31 3.3-V Line Transient
VIN = 2 V, VOUT = 0.55 V, IOUT slew rate = 1 A/µs

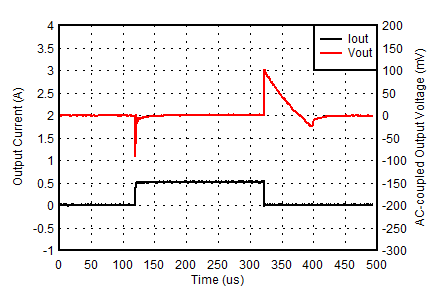

Figure 6-33 0.55-V, 1-mA to 500-mA Load Transient
VIN = 3.8 V, VOUT = 3.3 V, IOUT = 1 mA
Figure 6-35 VIN Power-Up

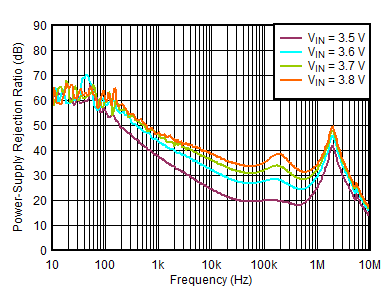

VOUT = 3.3 V, IOUT = 500 mA, COUT = 2.2 µF
Figure 6-37 PSRR vs Frequency and VIN
VOUT = 3.3 V, IOUT = 250 mA, COUT = 2.2 µF
Figure 6-39 PSRR vs Frequency and VIN
IOUT = 500 mA, COUT = 2.2 µF
Figure 6-41 PSRR vs Frequency
VIN = 3.8 V, VOUT = 3.3 V, IOUT = 500 mA

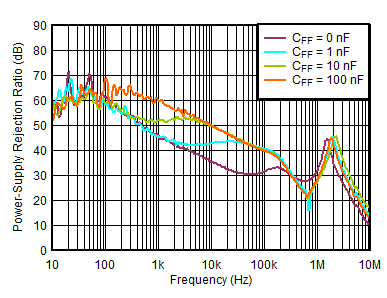

Figure 6-43 PSRR vs Frequency and CFF
VIN = 3.8 V, VOUT = 3.3 V, COUT = 2.2 µF, VRMS BW = 10 Hz to 100 kHz
Figure 6-45 Output Spectral Noise Density vs Frequency and IOUT
VIN = 3.8 V, VOUT = 3.3 V, IOUT = 100 mA, CFF = 0 µF, VRMS BW = 10 Hz to 100 kHz
Figure 6-47 Output Spectral Noise Density vs Frequency and COUT
VOUT = 3.3 V, IOUT = 1 mA
Figure 6-2 Output Voltage vs Ambient Temperature
0.65-V, 3.3-V, and 5-V options, IOUT = 1 mA
Figure 6-4 Temperature Drift Histogram (–40°C to +25°C)
VOUT = 3.3 V, IOUT = 1 mA
Figure 6-6 3.3-V Line Regulation vs VIN
VOUT = 5.5 V, IOUT = 1 mA

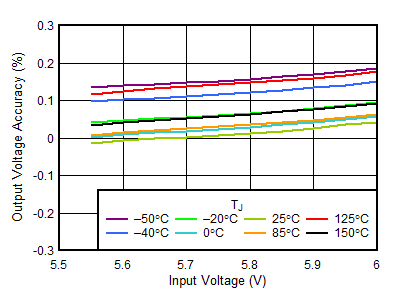

Figure 6-8 5.5-V Line Regulation vs VIN
Figure 6-10 0.55-V Dropout Voltage vs IOUT
IOUT = 500 mA
Figure 6-12 VDO vs VOUT
VEN = 0 V
Figure 6-14 ISHDN vs VIN
VIN = 3.8 V, VOUT = 3.3 V
Figure 6-16 3.3-V Load Regulation vs IOUT
VIN = 6 V, VOUT = 5.5 V
Figure 6-18 5.5-V Load Regulation vs IOUT

Figure 6-20 PGLTH and PGHTH vs Temperature

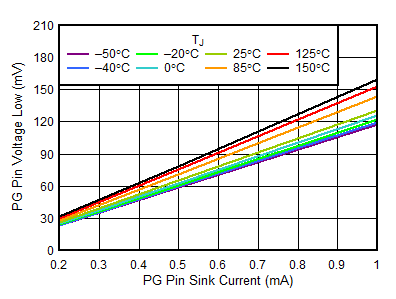

VIN = 3.8 V, VOUT = 3.3 V
Figure 6-22 VOL(PG) vs PG Pin Sink Current

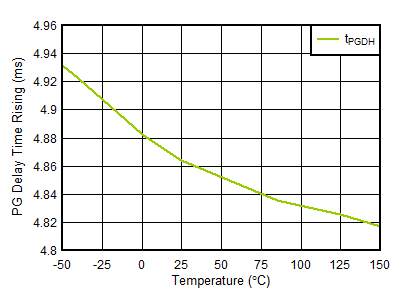

Figure 6-24 tPGDH vs Temperature

Figure 6-26 tPGDL vs Temperature
VEN = 5.5 V
Figure 6-28 IEN vs VIN
VOUT = 0.55 V, IOUT = 1 mA, VIN slew rate = 1 V/µs
Figure 6-30 0.55-V Line Transient
VIN = 3.8 V, VOUT = 3.3 V, IOUT slew rate = 1 A/µs
Figure 6-32 3.3-V, 1-mA to 500-mA Load Transient
VIN = 5.5 V, VOUT = 5 V, IOUT slew rate = 1 A/µs
Figure 6-34 5-V, 1-mA to 500-mA Load Transient
VIN = 3.8 V, VOUT = 3.3 V, IOUT = 1 mA
Figure 6-36 Start-Up With EN

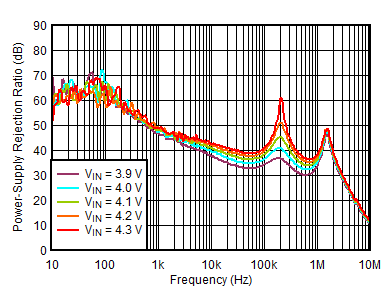

VOUT = 3.3 V, IOUT = 500 mA, COUT = 2.2 µF
Figure 6-38 PSRR vs Frequency and VIN
VOUT = 3.3 V, IOUT = 250 mA, COUT = 2.2 µF
Figure 6-40 PSRR vs Frequency and VIN
VIN = 3.8 V, VOUT = 3.3 V, IOUT = 500 mA
Figure 6-42 PSRR vs Frequency and COUT
VIN = 3.8 V, VOUT = 3.3 V, COUT = 2.2 µF
Figure 6-44 PSRR vs Frequency and ILOAD
VIN = 3.8 V, VOUT = 3.3 V, IOUT = 500 mA, COUT = 2.2 µF, VRMS BW = 10 Hz to 100 kHz
Figure 6-46 Output Spectral Noise Density vs Frequency and CFF
IOUT = 500 mA, COUT = 2.2 µF, VRMS BW = 10 Hz to 100 kHz

Figure 6-48 Output Spectral Noise Density vs Frequency
