7.6 Typical Characteristics

TJ = TA = 25°C unless otherwise specified. Characteristics are identical for TPS92515x and TPS92515HVx. VIN >42 V curves apply to TPS92515HVx only.
TPS92515 TPS92515-Q1 TPS92515HV TPS92515HV-Q1 D008_SLUSBZ6.gif
VIADJ = 2.2 V VIN = 40 V
Figure 1. VCST vs. Junction Temperature
TPS92515 TPS92515-Q1 TPS92515HV TPS92515HV-Q1 D002_SLUSBZ6.gif
Figure 3. VCC vs. Junction Temperature
TPS92515 TPS92515-Q1 TPS92515HV TPS92515HV-Q1 D012_SLUSBZ6.gif
VIN = 6 V

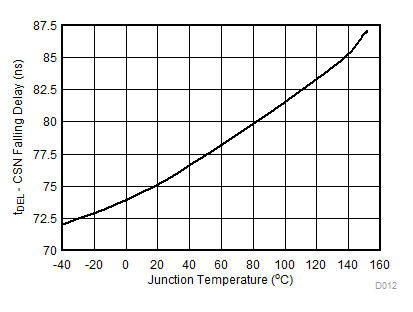

Figure 5. CSN Pin Falling Delay Time vs. Junction Temperature
TPS92515 TPS92515-Q1 TPS92515HV TPS92515HV-Q1 D014_SLUSBZ6.gif
Figure 7. Leading-Edge Blanking Time vs. Junction Temperature
TPS92515 TPS92515-Q1 TPS92515HV TPS92515HV-Q1 D016_SLUSBZ6.gif
VLED = 35 V VIADJ=2.4 V RSENSE = 0.196 Ω
Figure 9. EVM Configuration Result
TPS92515 TPS92515-Q1 TPS92515HV TPS92515HV-Q1 D009_SLUSBZ6.gif
VIADJ = VCC VIN = 40 V
Figure 2. VCST vs. Junction Temperature
TPS92515 TPS92515-Q1 TPS92515HV TPS92515HV-Q1 D003_SLUSBZ6.gif
Figure 4. VOFF vs. Junction Temperature
TPS92515 TPS92515-Q1 TPS92515HV TPS92515HV-Q1 D013_SLUSBZ6.gif
VIN = 40 V
Figure 6. Off-Time Delay vs. Junction Temperature
TPS92515 TPS92515-Q1 TPS92515HV TPS92515HV-Q1 D015_SLUSBZ6.gif
VLED = 22 V VIADJ=2.4 V RSENSE = 0.196 Ω
Figure 8. EVM Configuration Result
TPS92515 TPS92515-Q1 TPS92515HV TPS92515HV-Q1 D017_SLUSBZ6.gif

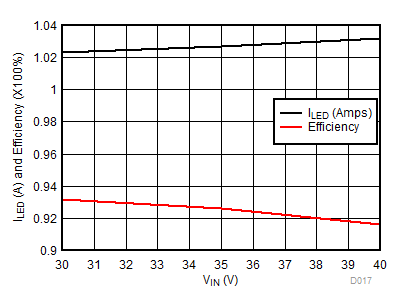

VLED = 13 V VIADJ=2.4 V RSENSE = 0.196 Ω
Figure 10. EVM Configuration Result
