7
Parameter Measurement Information
A.
C
L
includes probe and jig capacitance.
B.
The pulse generator has the following characteristics: Z
O
= 50 Ω, 50% duty cycle, t
r
≤ 10 ns, t
f
≤ 10 ns.

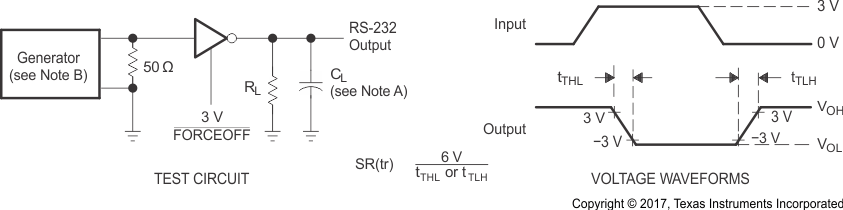

Figure 7-1
Driver Slew Rate
A.
C
L
includes probe and jig capacitance.
B.
The pulse generator has the following characteristics: Z
O
= 50 Ω, 50% duty cycle, t
r
≤ 10 ns, t
f
≤ 10 ns.

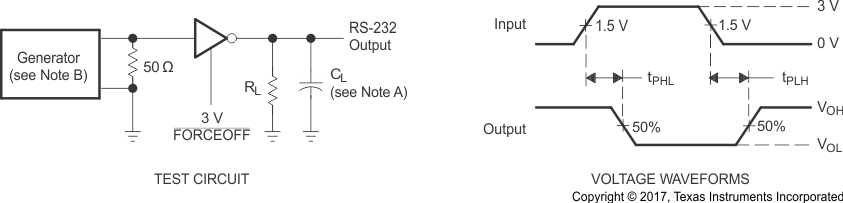

Figure 7-2
Driver Pulse Skew
A.
C
L
includes probe and jig capacitance.
B.
The pulse generator has the following characteristics: Z
O
= 50 Ω, 50% duty cycle, t
r
≤ 10 ns, t
f
≤ 10 ns.
Figure 7-3
Receiver Propagation Delay Times
A.
C
L
includes probe and jig capacitance.
B.
The pulse generator has the following characteristics: Z
O
= 50 Ω, 50% duty cycle, t
r
≤ 10 ns, t
f
≤ 10 ns.
C.
t
PLZ
and t
PHZ
are the same as t
dis
.
D.
t
PZL
and t
PZH
are the same as t
en
.

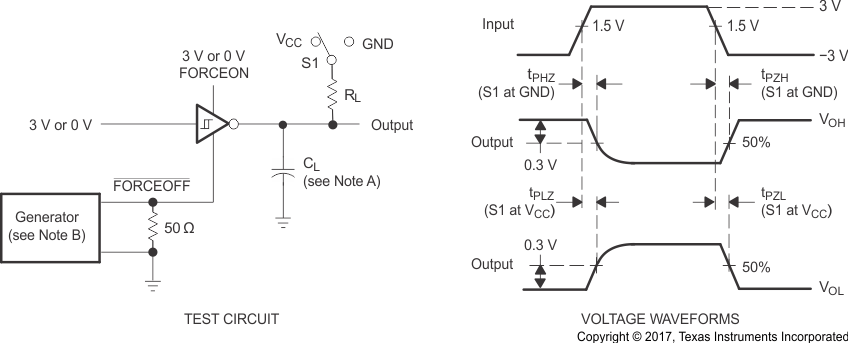

Figure 7-4
Receiver Enable And Disable Times
A.
C
L
includes probe and jig capacitance.
B.
The pulse generator has the following characteristics: Z
O
= 50 Ω, 50% duty cycle, t
r
≤ 10 ns, t
f
≤ 10 ns.
Figure 7-5
INVALID
Propagation Delay Times And Supply Enabling Time
