3 Description

The TRSF3232E consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15kV ESD protection pin to pin (serial-port connection pins, including GND). This device provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3V to 5.5V supply. The TRSF3232E operates at data signaling rates up to 1Mbit/s and a driver output slew rate of 14V/μs to 150V/μs.

Package Information
PART NUMBERPACKAGE(1)PACKAGE SIZE(2)
TRSF3232ED (SOIC)9.9mm x 6mm
DB (SSOP)6.2mm x 7.8mm
DW (SOIC)10.3 mm x 10.3mm
PW (TSSOP)5mm x 6.4mm
RGT (VQFN)3mm x 3mm
SOT-23-THN (DYY, 16) 4.2mm × 2mm
(1) For more information, see Section 11 .
(2) The package size (length × width) is a nominal value and includes pins, where applicable.

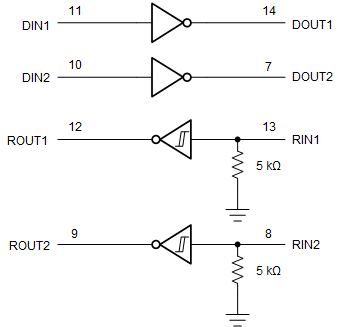

TRSF3232E Logic Diagram (Positive Logic)Logic Diagram (Positive Logic)
