9.3.3 DisplayPort Only

The TUSB1146 operates in 4 Lanes of DisplayPort only mode when the CTL1 pin is high and CTL0 pin is low.

TUSB1146 TUSB1146_4DP_NoFlip.gifFigure 40. Four Lane DP – No Flip (CTL1 = H, CTL0 = L, FLIP = L)

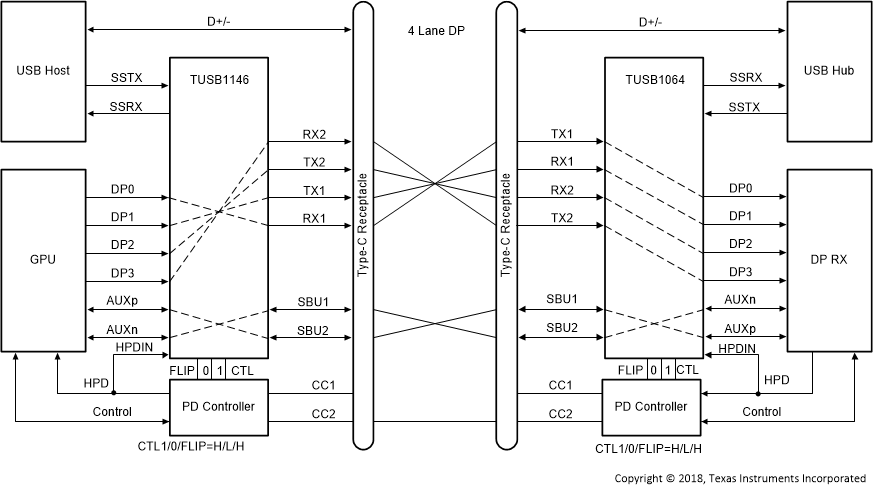

TUSB1146 TUSB1146_4DP_Flip.gifFigure 41. Four Lane DP – With Flip (CTL1 = H, CTL0 = L, FLIP = H)
