7.8
Typical Characteristics
At +25°C, AVDD = 2.5 V, AVSS = –2.5 V, f
CLK
= 4.096 MHz, VREFP = 2.5 V, VREFN = –2.5 V, DVDD = 3.3 V, PGA = 1, High-Resolution Mode, OFFSET enabled, CHOP enabled, and f
DATA
= 1000 SPS (unless otherwise noted).
Figure 2.
Output Spectrum
Figure 4.
Output Spectrum
Figure 6.
Output Spectrum
Figure 8.
Output Spectrum
Figure 10.
Output Spectrum
Figure 12.
Output Spectrum
Figure 14.
Output Spectrum
Figure 16.
THD vs Temperature
Figure 18.
THD vs Signal Frequency

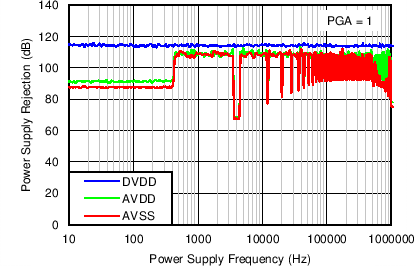

Figure 20.
PSR vs Power-Supply Frequency
Figure 22.
Offset-Voltage Drift Histogram
Figure 24.
Gain-Error Drift Histogram
Figure 26.
SNR vs Temperature
Figure 28.
Crosstalk Output Spectrum
Figure 30.
Input Bias Current vs Input Voltage
Figure 32.
Reference Input Impedance vs Temperature
Figure 3.
Output Spectrum (Low-Power mode)
Figure 5.
Output Spectrum (Low-Power Mode)
Figure 7.
Output Spectrum (Low-Power Mode)
Figure 9.
Output Spectrum (Low-Power Mode)
Figure 11.
Output Spectrum (Low-Power Mode)
Figure 13.
Output Spectrum (Low-Power Mode)
Figure 15.
Output Spectrum
Figure 17.
THD vs Temperature (Low-Power Mode)
Figure 19.
CMR vs Common-Mode Frequency

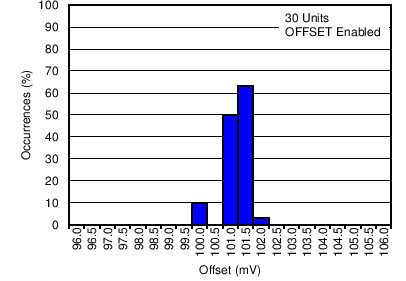

Figure 21.
Offset-Voltage Histogram
Figure 23.
Gain-Error Histogram
Figure 25.
Gain-Match Histogram
Figure 27.
SNR vs Temperature (Low-Power Mode)
Figure 29.
Power vs Temperature
Figure 31.
Input Bias Current vs Input Voltage
