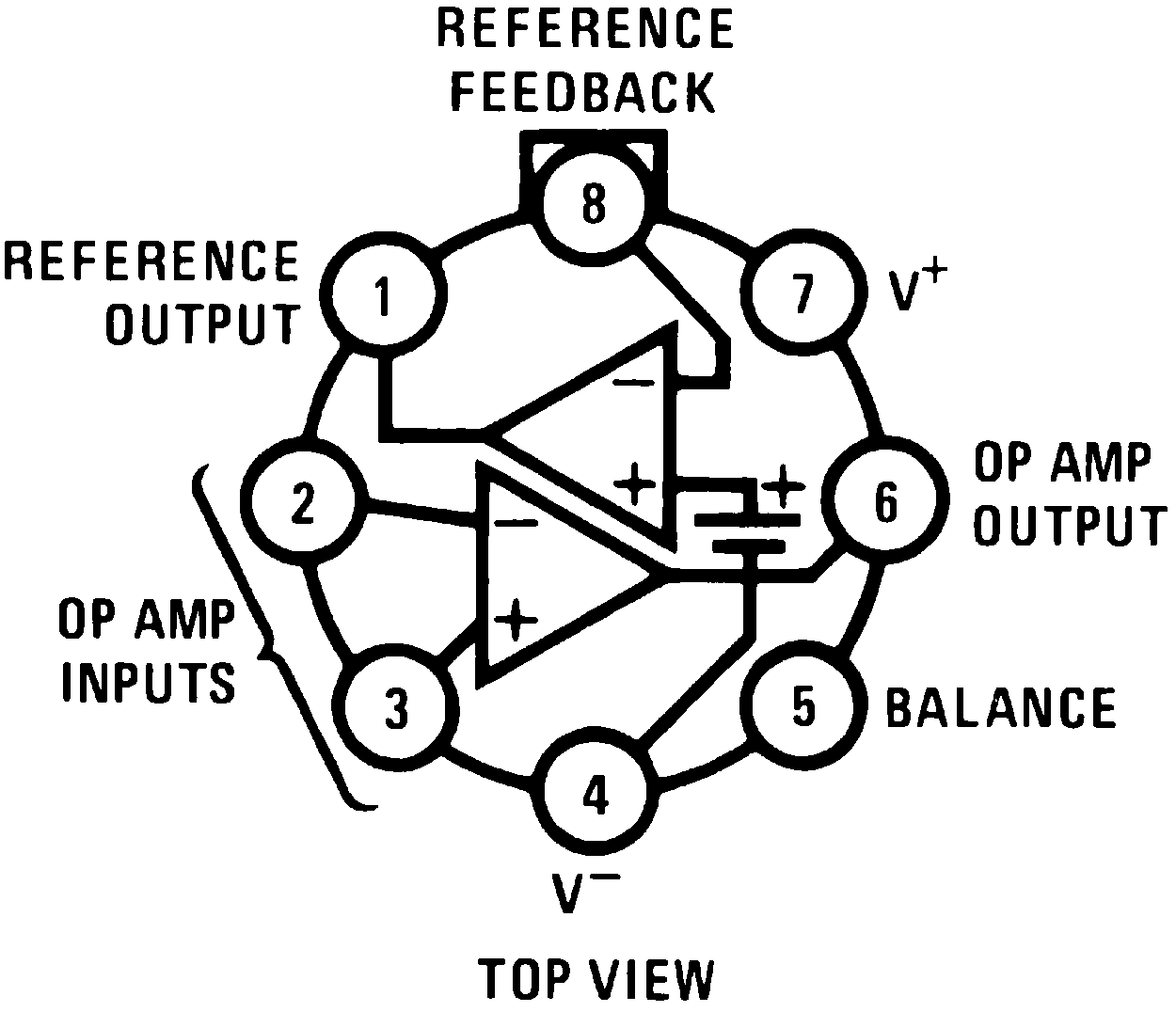

Pin Configuration and Functions

NEV Package
8-Pin SDIP
Top View
LM10-MIL 00565201.png
P Package
8-Pin PDIP
Top View
LM10-MIL 00565215.png

Pin Functions — 8-Pin SDIP or PDIP

PIN I/O DESCRIPTION
NAME NO.
Balance 5 I Used for offset nulling
Op Amp Input (+) 3 I Noninverting input of operational amplifier
Op Amp Input (–) 2 I Inverting input of operational amplifier
Op Amp Output 6 O Output terminal of operational amplifier
Reference Feedback 8 I Feedback terminal of reference
Reference Output 1 O Output terminal of reference
V+ 7 I Positive supply voltage
V– 4 I Negative supply voltage

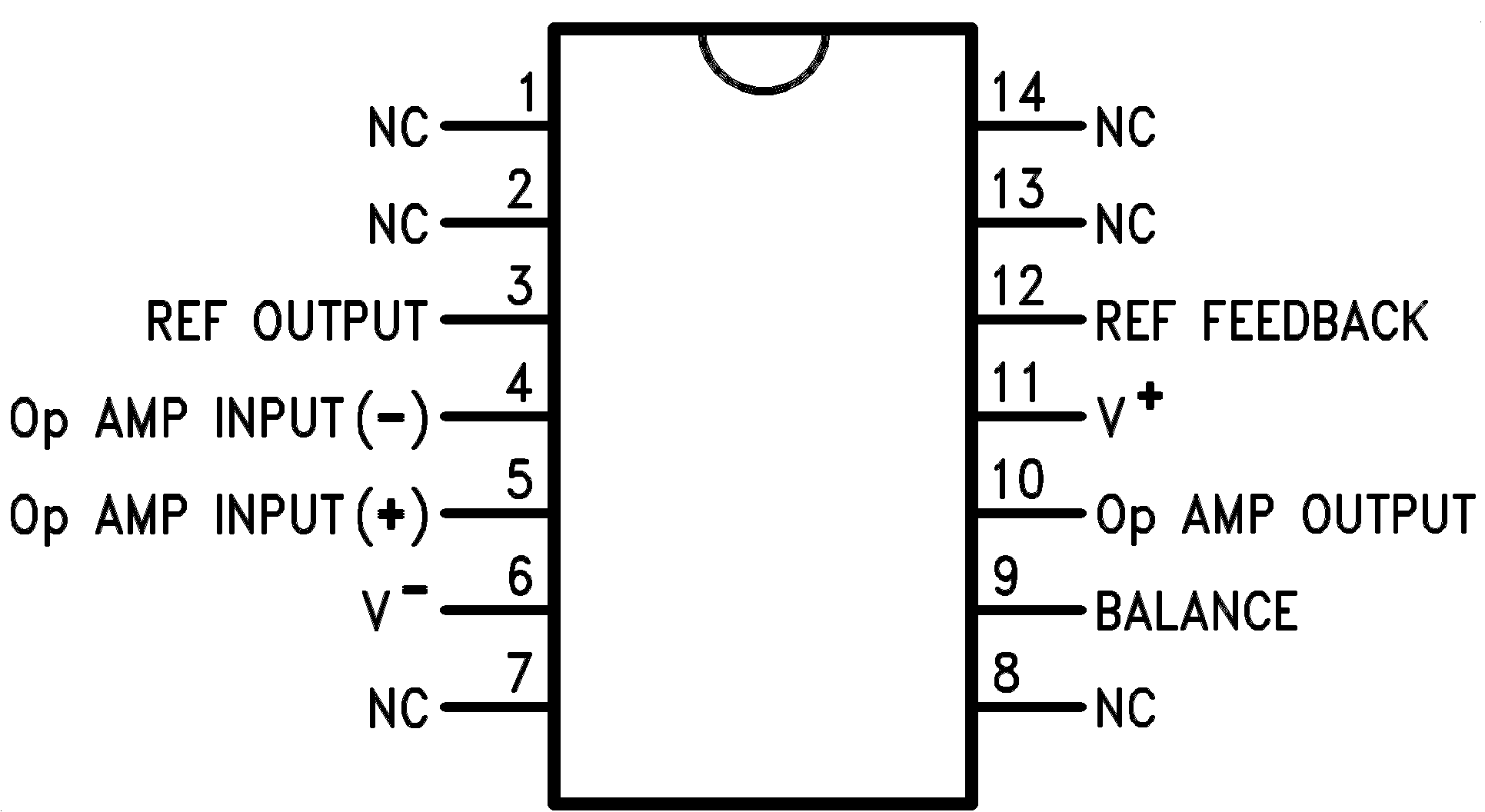

NPA Package
14-Pin SOIC
Top View
LM10-MIL 00565217.png

Pin Functions — 14-Pin SOIC

PIN I/O DESCRIPTION
NAME NO.
Balance 9 I Used for offset nulling
NC 1, 2, 7, 8, 14, 13 No connection
Op Amp Input (–) 4 I Inverting input of operational amplifier
Op Amp Input (+) 5 I Noninverting input of operational amplifier
Op Amp Output 10 O Output terminal of operational amplifier
Reference Feedback 12 I Feedback terminal of reference
Reference Output 3 O Output terminal of reference
V+ 11 I Positive supply voltage
V– 6 I Negative supply voltage
