9.2.2.1 Designing the Hardware Layout

The first steps towards designing a keypad array is to determine the desired layout, and to map each key to the appropriate value which will show up in the FIFO. For this example, the number pad below is the physical location of the keys that are desired. The layout is a 4 x 3 array, using rows 0-3 and columns 0-2. For this example, we will not assume any of the other pins will be used.

The following behavior is desired for this example design

  • All keys in the keypad array to be added to the FIFO upon a key press
  • Attempting to clear the interrupt before the proper registers have been cleared to de-assert the INT pin for 50 μs, then assert the INT pin.
  • No additional pins are being used, other than the keypad array
  • Keypad lock support, requiring that the unlock combination be ‘#, 1’ which must be pressed within 2 seconds of each other
  • Keypad lock interrupt mask timer of 10 seconds to match the back light auto-turn off with 10 seconds of no interrupt
  • Hardware debouncing to be enabled

TCA8418 TypAppKeypadExample.gifFigure 30. Example Keypad

Since the TCA8418 reports keys pressed according to the values in the key value table, it is important to know the TCA8418 values for the key locations.

According to the key event table, the key presses are assigned in Table 12.

Table 12. Key Press Assignment

Keypad Button 1 2 3 4 5 6 7 8 9 * 0 #
Key Event Table Value (Decimal) 1 2 3 11 12 13 21 22 23 31 32 33

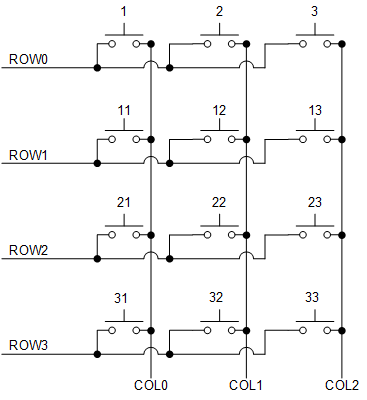

The schematic for this keypad layout is shown in figure (schematic below) with the key event table values. Note that no external pullup resistors are needed, because the TCA8418 has integrated pullup resistors.

TCA8418 TypAppKeypad.gifFigure 31. Keypad Schematic
