7.3.3 EMI Rejection

The INA165x-Q1 use integrated electromagnetic interference (EMI) filtering to reduce the effects of EMI from sources (such as wireless communications) and densely-populated boards with a mix of analog signal-chain and digital components. The INA165x-Q1 devices are specifically designed to minimize susceptibility to EMI by incorporating an internal low-pass filter. Depending on the end-system requirements, additional EMI filters may be required near the signal inputs of the system; as well as incorporating known good practices, such as using short traces, low-pass filters, and damping resistors combined with parallel and shielded signal routing. Texas Instruments developed a method to accurately measure the immunity of an amplifier over a broad frequency spectrum, extending from 10 MHz to 6 GHz. This method uses an EMI rejection ratio (EMIRR) to quantify the ability of the INA165x-Q1 to reject EMI. Figure 41 and Figure 42 show the INA165x-Q1 EMIRR graph for both differential and common-mode EMI rejection across this frequency range. Table 1 shows the EMIRR values for the INA165x-Q1 at frequencies commonly encountered in real-world applications. Applications listed in Table 1 can be centered on or operated near the particular frequency shown.

INA1650-Q1 INA1651-Q1 C202_SBOS772.png

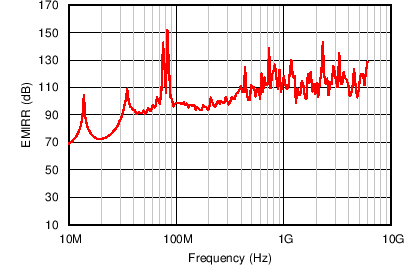

Figure 41. Common-Mode EMIRR Testing
INA1650-Q1 INA1651-Q1 C201_SBOS772.png
Figure 42. Differential Mode EMIRR Testing

Table 1. EMIRR for Frequencies of Interest

FREQUENCY APPLICATION OR ALLOCATION DIFFERENTIAL
EMIRR		 COMMON-MODE
EMIRR
400 MHz Mobile radio, mobile satellite, space operation, weather, radar, ultrahigh-frequency (UHF) applications 73 dB 111 dB
900 MHz Global system for mobile communications (GSM) applications, radio communication, navigation, GPS (up to 1.6 GHz), GSM, aeronautical mobile, UHF applications 86 dB 123 dB
1.8 GHz GSM applications, mobile personal communications, broadband, satellite,
L-band (1 GHz to 2 GHz)		 106 dB 121 dB
2.4 GHz 802.11b, 802.11g, 802.11n, Bluetooth®, mobile personal communications, industrial, scientific and medical (ISM) radio band, amateur radio and satellite, S-band (2 GHz to 4 GHz) 112 dB 119 dB
3.6 GHz Radiolocation, aero communication and navigation, satellite, mobile, S-band 117 dB 121 dB
5.0 GHz 802.11a, 802.11n, aero communication and navigation, mobile communication, space and satellite operation, C-band (4 GHz to 8 GHz) 116 dB 108 dB
