7.3 Schematics

Figure 7-5 through Figure 7-7 illustrate the schematics for the ADS8354EVM-PDK.

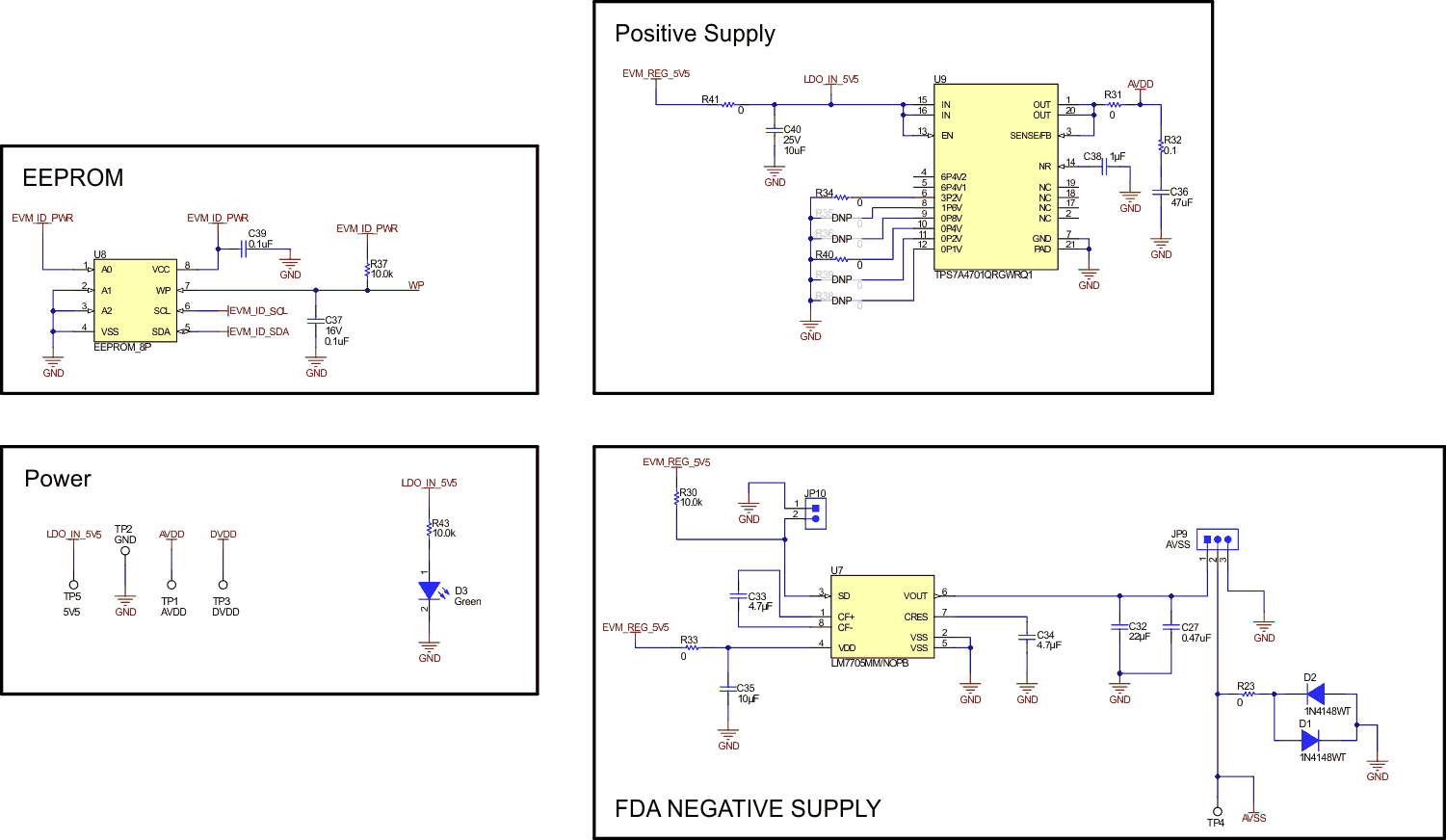

GUID-20230221-SS0I-PRVM-JKQC-QRMP3DXH51LG-low.gif Figure 7-5 Schematic Diagram (Page 1): EEPROM, Power Supplies
GUID-20230221-SS0I-L3DG-X9SV-T68SZZD7R04J-low.gif Figure 7-6 Schematic Diagram (Page 2): Analog Inputs, ADC Main, External Reference, PHI Connector
GUID-20230221-SS0I-0NPC-NTNJ-J44ST9KN4Q4X-low.gif Figure 7-7 Schematic Diagram (Page 3): Hardware Components
