2.1 Main

The main routine has the following purpose:

  • Initialize basic functionality of the MSP430 MCU
  • Initialize the other MSP430FRBoot layers
  • Implement the main loop which polls the communication interface and processes commands

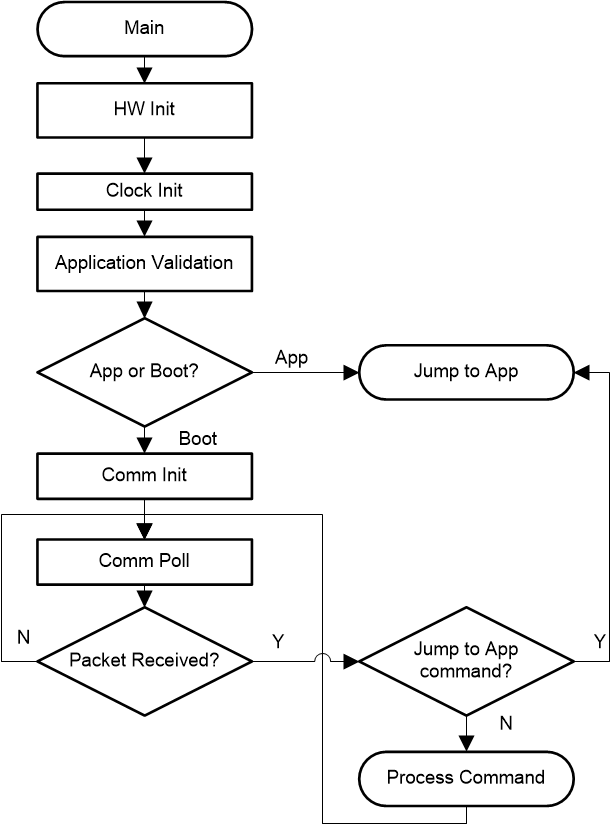

Figure 2-2 shows the state diagram of the main routine.

GUID-4A0869E6-CFB5-4A4D-A8B5-9C60076624F1-low.gif Figure 2-2 Flow Diagram of Main
