2.2.5 I2S Communication

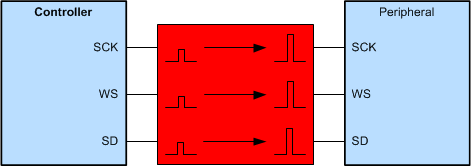

GUID-50730399-1F28-4B87-BA83-30D2611A2833-low.gifFigure 2-12 Using Voltage Translation with an I2S Communication Bus
  • Enable communication when devices have mismatched logic voltage levels
  • Prevent damage to devices that cannot support higher voltage inputs
  • Improve data rates over discrete translation solutions
  • Protect controller while peripheral is not connected
  • Find the right voltage level translator through the online parametric search tool
