1.1.3 EVM Cables

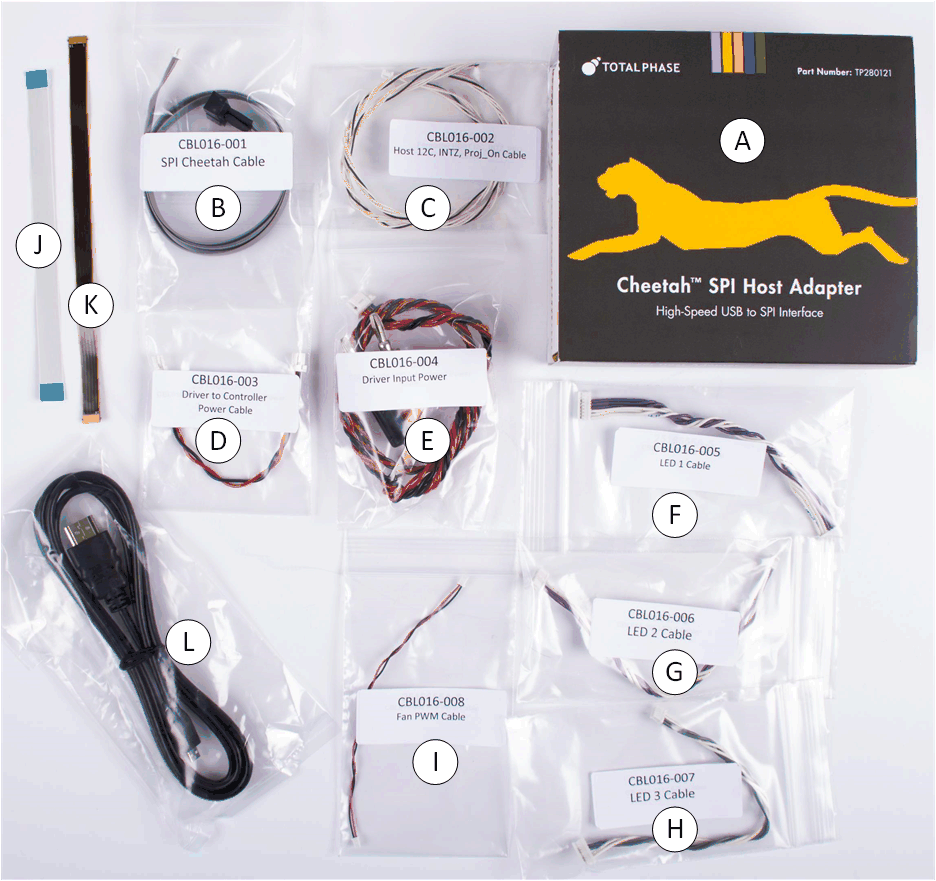

The EVM cables and Cheetah USB to SPI adapter are listed in Table 1-5 and shown in Figure 1-4.

EVM CablesFigure 1-4 EVM Cables
Table 1-5 EVM Cables
NAMEREFERENCEQUANTITY
Cheetah™ SPI Host AdapterA1
Host SPI CableB1
Host I2C Cable
(Includes PROJ_ON, HOLD_BOOT, HOST_IRQ signals)		C1
Driver to Controller Power CableD1
Input Power CableE1
LED1 Illuminator Power CableF1
LED2 Illuminator Power CableG1
LED3 Illuminator Power CableH1
Fan PWMI1
Controller to Driver Control FlexJ1
OpenLDI Flex CableK1
Micro HDMI CableL1
