3 DLP LightCrafter Display 471TP EVM Components

The DLP LightCrafter Display module consists of three subsystems:

  • Light engine – Includes the optics, red, green, and blue LEDs, DMD interface board, and a DLP471TP 4K UHD DMD capable of over 500 lumens out-of-the-box.
  • Formatter Board – Includes the DLP chipset comprised of a DLPC6540 controller and DLPA3005 PMIC/LED driver, USB, and power connector.
  • Front-End Board – Includes the HDMI receiver and external HDMI connector.

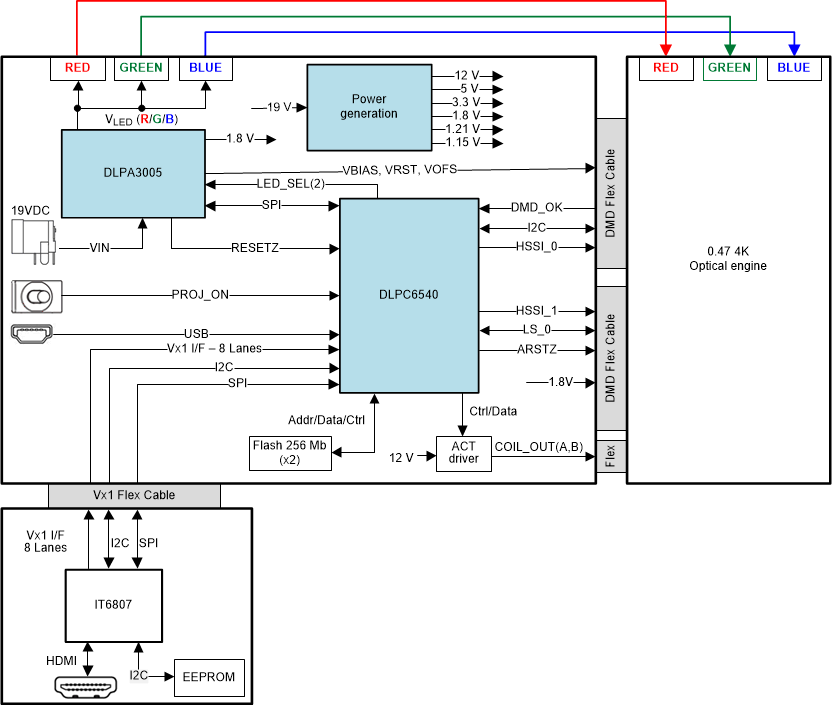

DLPC6540, DLP471TP DLP LightCrafter Display EVM Block DiagramFigure 3-1 DLP LightCrafter Display EVM Block Diagram
