6.8 Typical Characteristics

at TA = 25°C, AVDD = 5 V, AVSS = 0 V, DVDD = 3.3 V, VREF = 5 V, data rate = 20 SPS, fCLK = 7.3728 MHz and gain = 128 (unless otherwise noted)
ADS1235 D009_SBAS824.gif
After calibration, shorted input
Figure 9. Offset Voltage vs Temperature
ADS1235 D012_SBAS824.gif
Shorted input, 30 units
Figure 11. Offset Voltage Drift Distribution
ADS1235 D001_SBAS824.gif
After calibration
Figure 13. Offset Voltage vs Reference Voltage
ADS1235 D013_SBAS824.gif
30 units
Figure 15. Gain Drift Distribution
ADS1235 D003_SBAS824.gif
20 SPS, Sinc4 mode
Figure 17. Noise vs Temperature
ADS1235 D006_SBAS824.gif
Figure 19. Noise vs Reference Voltage
ADS1235 D031_SBAS824.gif
7200 SPS, Gain = 128, 8192 data points, shorted inputs
Figure 21. Conversion Data Histogram
ADS1235 D007_SBAS824.gif
Figure 23. Integral Non-Linearity vs Temperature
ADS1235 D008_SBAS824.gif
Figure 25. Integral Non-Linearity vs Reference Voltage
ADS1235 D112_SBAS824.gif
Chop Mode, Gain = 128
Figure 27. Differential Input Current
ADS1235 D113_SBAS824.gif
Gain = 128
Figure 29. Absolute Input Current
ADS1235 D024_SBAS760.gif
VREFN = AVSS
Figure 31. Reference Input Current vs Reference Voltage
ADS1235 D016_SBAS760.gif
30 units
Figure 33. Internal Oscillator Frequency vs Temperature
ADS1235 D026_SBAS824.gif
30 units
Figure 35. PGA Low Monitor Threshold vs Temperature
ADS1235 D034_SBAS760.gif

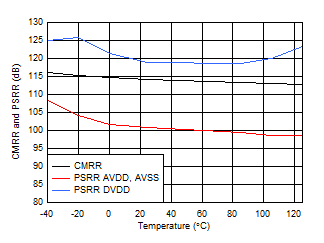

Figure 37. CMRR and PSRR vs Temperature
ADS1235 D010_SBAS824.gif
Chop mode, after calibration, shorted input
Figure 10. Offset Voltage vs Temperature
ADS1235 D011_SBAS824.gif
Chop mode, shorted input, 30 units
Figure 12. Offset Voltage Drift Distribution
ADS1235 D014_SBAS824.gif
After calibration
Figure 14. Gain Error vs Temperature
ADS1235 D002_SBAS824.gif
After calibration
Figure 16. Gain vs Reference Voltage
ADS1235 D004_SBAS824.gif
7200 SPS, Sinc1 mode
Figure 18. Noise vs Temperature
ADS1235 D029_SBAS824.gif
20 SPS, Gain = 128, 256 data points, shorted inputs
Figure 20. Conversion Data Histogram
ADS1235 D033_SBAS824.gif
Figure 22. Integral Non-Linearity vs VIN
ADS1235 D015_SBAS824.gif
30 Units
Figure 24. Integral Non-Linearity Distribution
ADS1235 D110_SBAS824.gif
Gain = 128
Figure 26. Differential Input Current
ADS1235 D111_SBAS824.gif
PGA Bypass (gain = 1)
Figure 28. Differential Input Current
ADS1235 D114_SBAS824.gif
Chop Mode, Gain = 128
Figure 30. Absolute Input Current
ADS1235 D017_SBAS760.gif
30 units
Figure 32. Temperature Sensor Voltage Histogram
ADS1235 D027_SBAS760.gif
30 units
Figure 34. Reference Low Monitor Threshold vs Temperature
ADS1235 D025_SBAS824.gif
30 units
Figure 36. PGA High Monitor Threshold vs Temperature
ADS1235 D018_SBAS824.gif
Figure 38. Operating Current vs Temperature
