7.4.2 Data Output Mode

The functionality of DSYNC1, DSYNC2, DCLK, and D[11:0] are controlled by selecting the data output mode. The functionality of the DSYNC1, DSYNC2, DCLK, and D[11:0] output pins for 4x serialization modes are shown in Figure 7-11 and Figure 7-12. Any event on the TRIG pin triggers the DSYNC1 and DSYNC2 signals. The DSYNC1 period is determined by the COMP_DSYNC1 register value and the DSYNC2 period is determined by the SAMPLE_COUNT register value. When OUT_MODE_EN = 0, data output is continuous. When OUT_MODE_EN = 1, data is active only during the sample phase. Output pins are configured using the registers described in Table 7-12 through Table 7-16.

AFE5401-EP Data Output Timing Diagram (4x Serialization)Figure 7-11 Data Output Timing Diagram (4x Serialization)

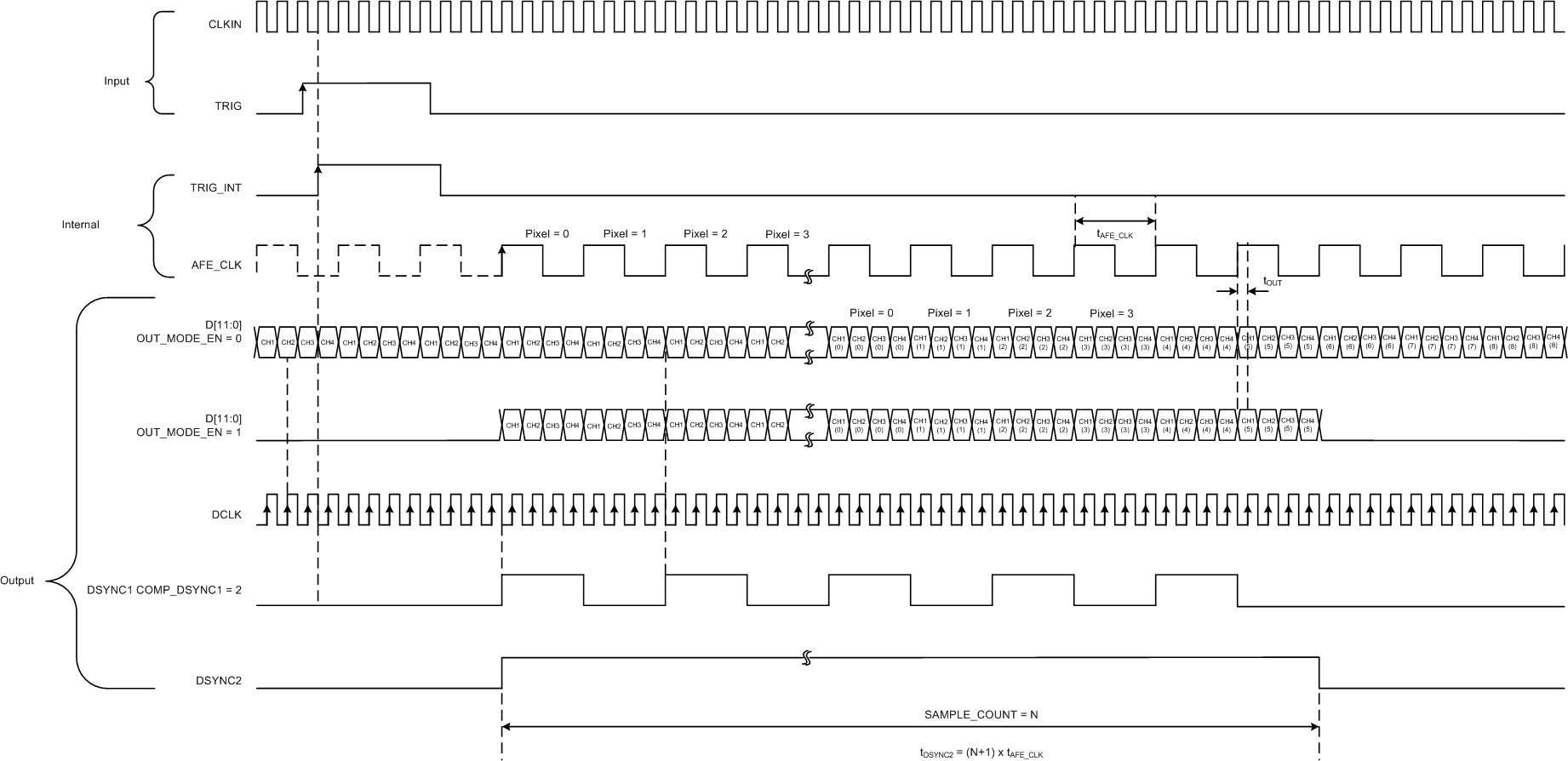

AFE5401-EP Data Output Timing Diagram (4x Serialization, Input Divider Enabled)Figure 7-12 Data Output Timing Diagram (4x Serialization, Input Divider Enabled)
Table 7-12 Register Functions
REGISTERFUNCTION
DELAY_COUNT[23:0]From a TRIG event, the sample phase is delayed for a DELAY_COUNT number of tAFE_CLK cycles
SAMPLE_COUNT[23:0]From the end of DELAY_PHASE, the sample phase duration is the SAMPLE_COUNT number of tAFE_CLK cycles
COMP_DSYNC1[15:0]DSYNC1 period in number of tAFE_CLKcycles
Table 7-13 DSYNC1_START_LOW Register
DSYNC1_START_LOWDESCRIPTION
0DSYNC1 is high at the sample phase start
1DSYNC1 is low at the sample phase start
Table 7-14 OUT_MODE_EN Register
OUT_MODE_ENDESCRIPTION
0Data always active
1Data active in sample phase
Table 7-15 DSYNC_EN Register
DSYNC_ENDESCRIPTION
0Disable DSYNC generation
1Enable DSYNC generation
Table 7-16 OUT_BLANK_HIZ Register
OUT_BLANK_HIZDESCRIPTION
0D[11:0] is low during inactive phase
1D[11:0] is high impedance during inactive phase


Note:

The signal processing blocks in the device are always active and are not controlled by output mode configuration settings.

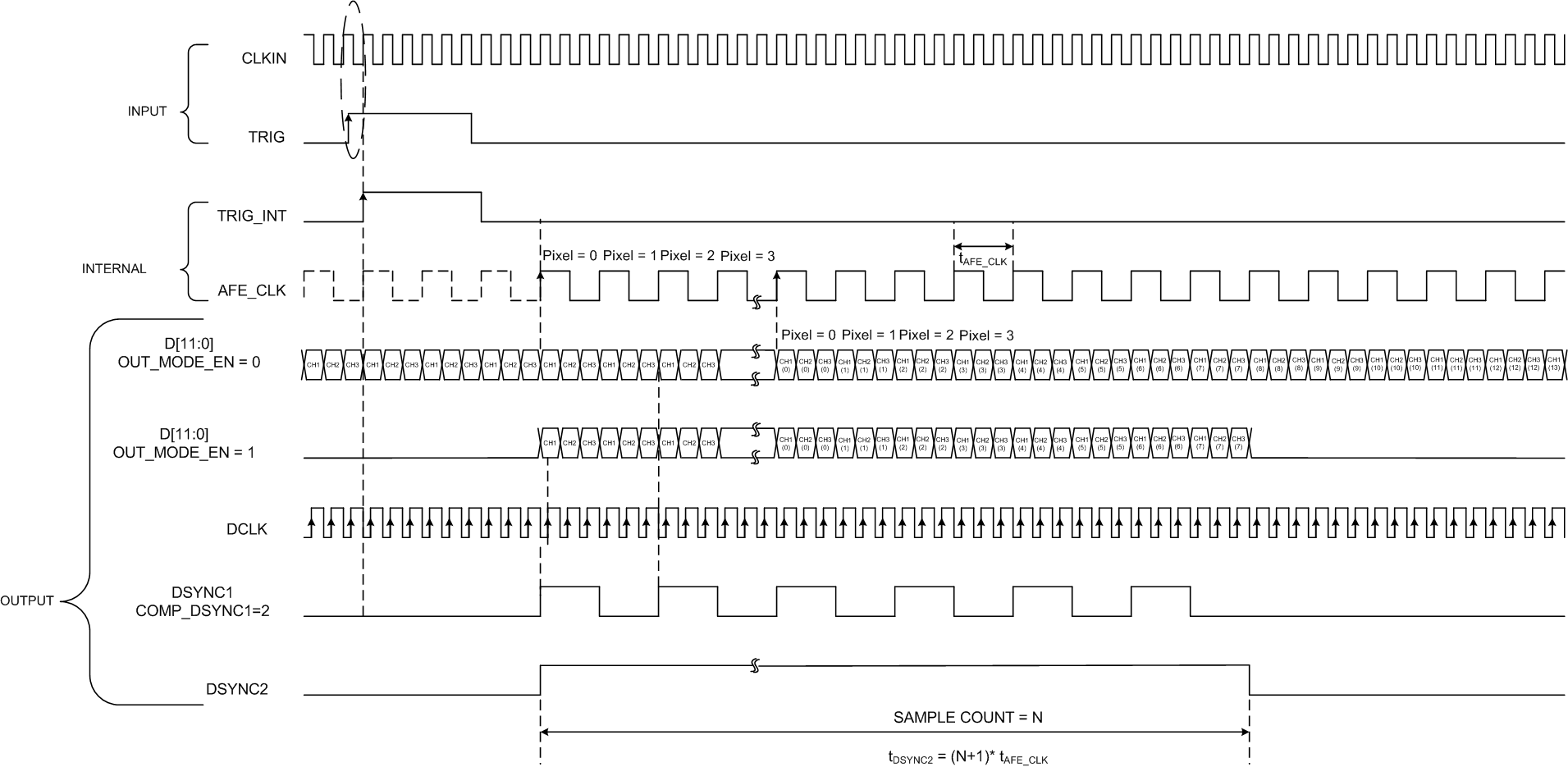

The functionality of the DSYNC1, DSYNC2, DCLK, and D[11:0] output pins with the input divider enabled for 3x serializations is shown in Figure 7-13.

AFE5401-EP Data Output Timing (3x Serialization, Input Divider Enabled)Figure 7-13 Data Output Timing (3x Serialization, Input Divider Enabled)

The TRIG to DSYNC2 latency is given by Table 7-17.

Table 7-17 TRIG to DSYNC2 Latency across Serialization Modes for AFE_CLK = 25 MHz
Serialization ModesTTRIG_DSYNC2_LAT(1)Units
4x230ns
3x230ns
2x240ns
1x250ns
(1) The TRIG_DSYNC2_LAT delay can vary by ± 8 ns.
