7 Parameter Measurement Information

The various test setup configurations for the OPA858 are shown in Figure 7-1, Figure 7-2, and Figure 7-3.

OPA858 Noninverting Configuration Figure 7-1 Noninverting Configuration

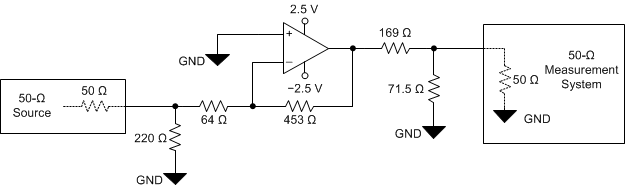

OPA858 Inverting Configuration (Gain = –7 V/V) Figure 7-2 Inverting Configuration (Gain = –7 V/V)

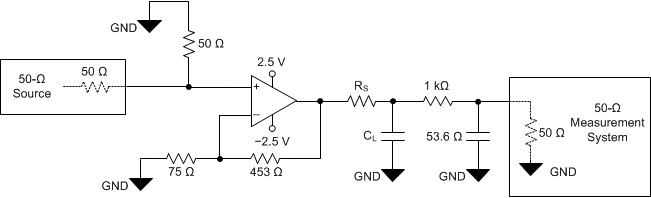

OPA858 Capacitive Load Driver Configuration Figure 7-3 Capacitive Load Driver Configuration
