5.4.3 TPS92518EVM-878 Connections and Power Up

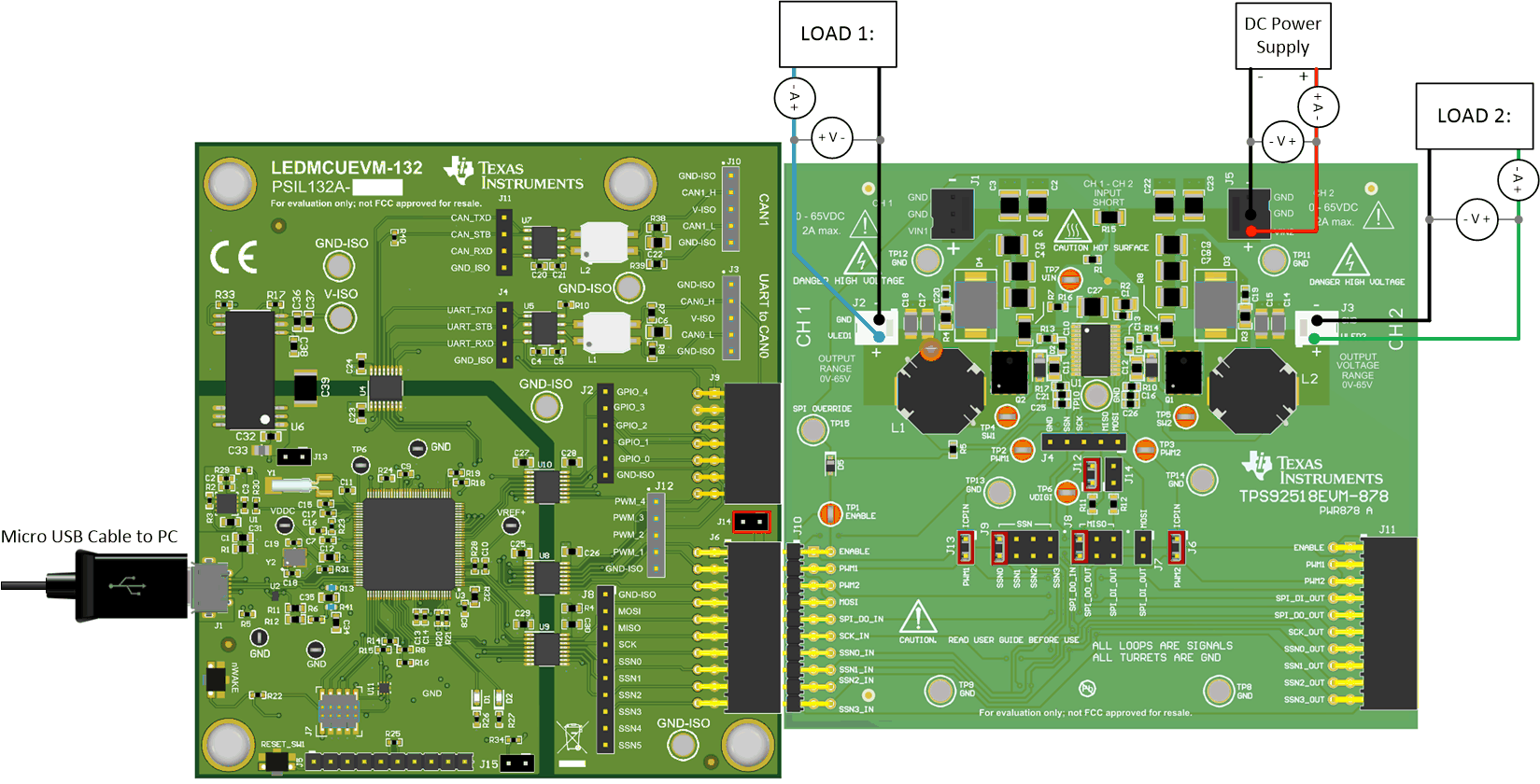

The TPS92518EVM-878 can be connected to the LEDMCUEVM-132 and use the associated GUI to monitor and control the TPS92518HV-Q1 device using the SPI bus to read and write commands. Here is a typical setup for controlling and testing the TPS92518EVM-878, see Figure 5-14. Note jumper locations are in red.
GUID-20200917-CA0I-ZNLD-XFJH-QXZJL4P11JFS-low.gifFigure 5-14 LEDMCUEVM-133 + TPS92518EVM-878 Connections and Setup.
