8 EVM Assembly Drawing and PCB Layout

Figure 8-1 through Figure 8-9 show the design of the TPS546C23EVM2-746 EVM printed circuit board.

GUID-50E28D99-9CCD-4718-BAAE-E98B49432DB2-low.png Figure 8-1 TPS546C23EVM2-746 EVM 3D (Top View)
GUID-F4E8EB74-0B43-4D8F-804E-D1D1A632FD52-low.png Figure 8-2 TPS546C23EVM2-746 EVM Top Layer Assembly Drawing (Top View)
GUID-41704A4C-48D8-43F7-9CBF-09DA54497007-low.png Figure 8-3 TPS546C23EVM2-746 EVM Bottom Assembly Drawing (Bottom View)
GUID-26794D5E-C576-4509-973E-C89E030511EA-low.gifFigure 8-4 TPS546C23EVM2-746 EVM Top Copper (Top View)

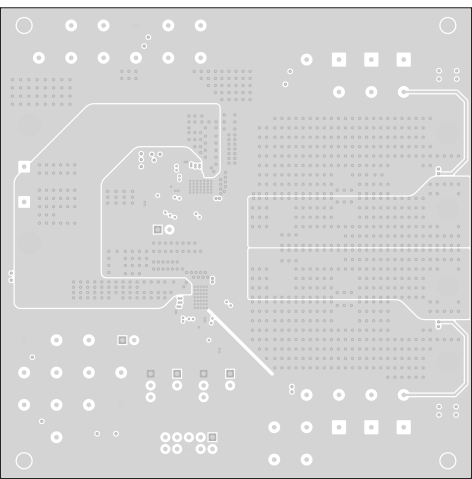

GUID-696E6DB0-6399-4EFE-8762-DE25810B5A94-low.gifFigure 8-5 TPS546C23EVM2-746 EVM Internal Layer 1 (Top View)

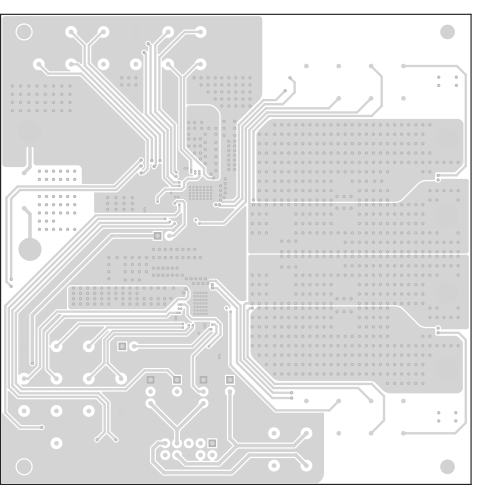

GUID-03A7F74B-7554-4FF5-9B2F-18037D596187-low.gifFigure 8-6 TPS546C23EVM2-746 EVM Internal Layer 2 (Top View)
GUID-3D29BC43-C9A7-4272-8BF9-4DBBE1D45E3A-low.gifFigure 8-7 TPS546C23EVM2-746 EVM Internal Layer 3 (Top View)

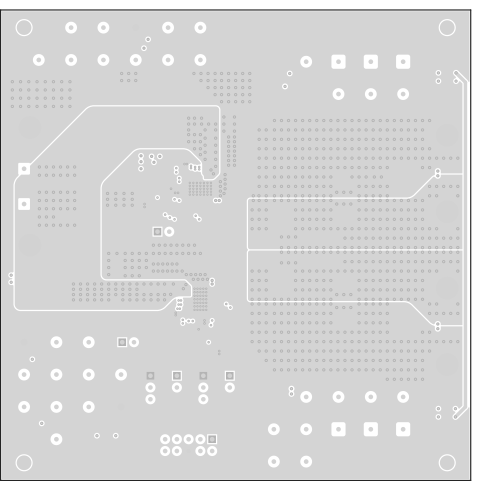

GUID-FCD0460F-F886-4747-AEF0-2690B26951BD-low.gifFigure 8-8 TPS546C23EVM2-746 EVM Internal Layer 4 (Top View)

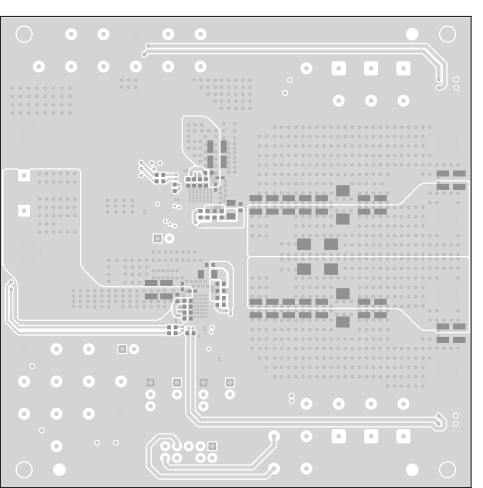

GUID-5830627E-007D-4204-AF23-BBCE3AA013A2-low.gifFigure 8-9 TPS546C23EVM2-746 EVM Bottom Copper (Top View)
