10 EVM Assembly Drawing and PCB Layout
Figure 10-1 through Figure 10-8 show the design of the PWR-869EVM printed-circuit board (PCB). The PWR-869EVM has a 2-oz. copper finish for all layers.
Figure 10-1 TPS543C20EVM-869 Top Layer Assembly Drawing (Top View)
Figure 10-2 TPS543C20EVM-869 Top Solder Mask (Top View)

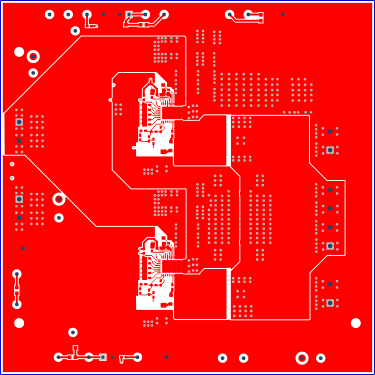

Figure 10-3 TPS543C20EVM-869 Top Layer (Top View)

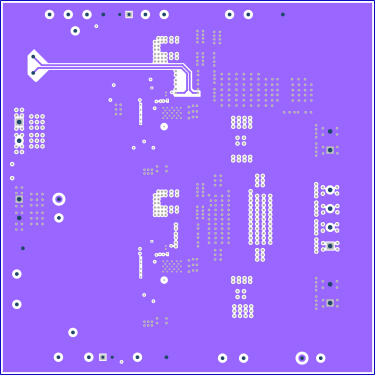

Figure 10-4 TPS543C20EVM-869 Inner Layer 1 (Top View)

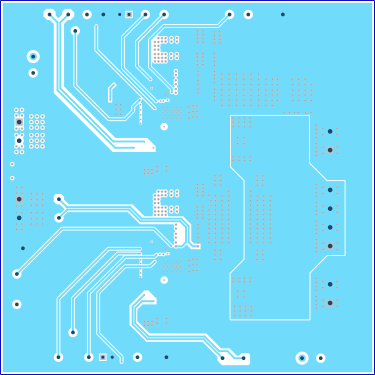

Figure 10-5 TPS543C20EVM-869 Inner Layer 2 (Top View)
Figure 10-6 TPS543C20EVM-869 Inner Layer 3 (Top View)
Figure 10-7 TPS543C20EVM-869 Inner Layer 4 (Top View)
Figure 10-8 TPS543C20EVM-869 Bottom Layer (Top View)
Figure 10-9 TPS543C20EVM-869 Bottom Solder Mask (Top View)

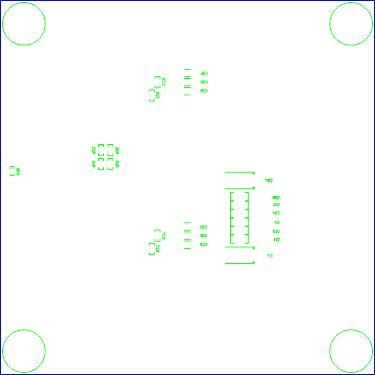

Figure 10-10 TPS543C20EVM-869 Bottom Overlay Layer (Top View)
