9.4 Transient Response

GUID-2B5E1599-D072-4C4E-BF22-FCBE1CF71EF0-low.gifFigure 9-4 Transient Response of 0.9-V Output at 12 VIN, Transient is 25 A to 50 A, Step is 25 A at 30 A/µs

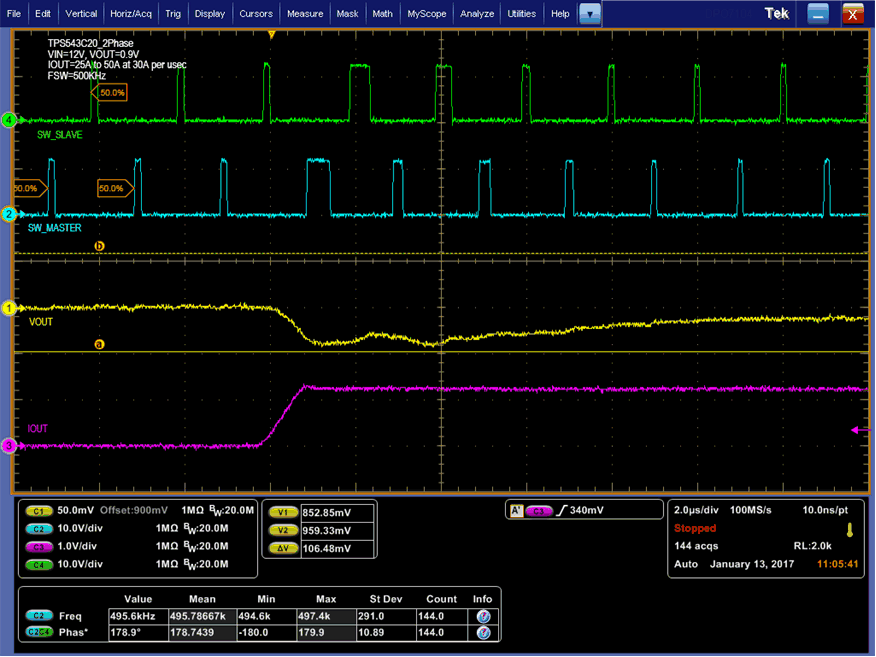

GUID-DE228C4F-FA89-4124-9EC8-47F7F0BD0B19-low.gifFigure 9-5 Transient Response of 25-A to 50-A Load at 30 A/µs Rise

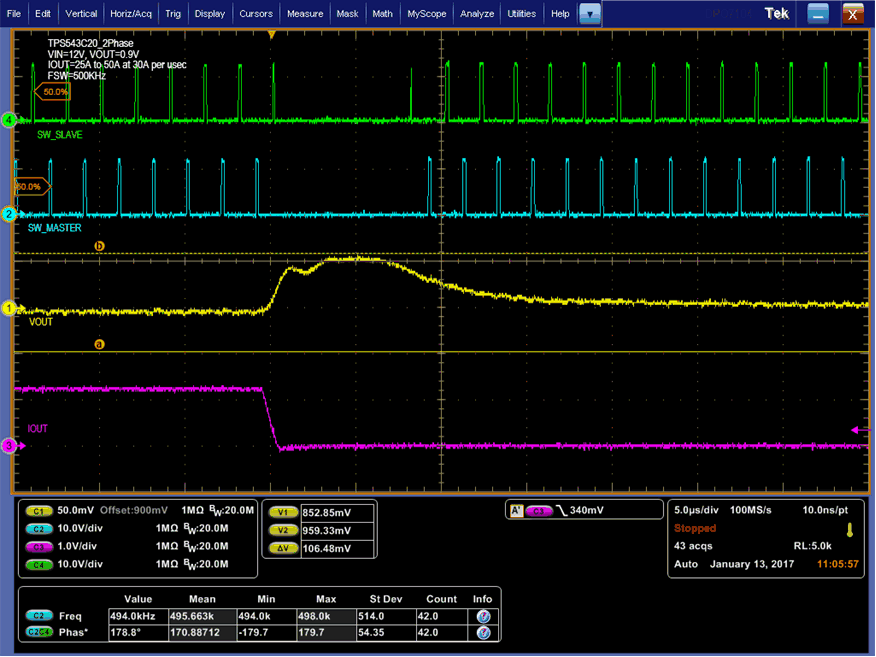

GUID-99F7DE86-1A39-420C-B0EB-4E459CC6C262-low.gifFigure 9-6 Transient Response of 50-A to 25-A Load at 30 A/µs Fall
