4.7 Output Voltage Ripple

The TPS563202EVM output voltage ripple is shown in Figure 4-7, Figure 4-8, and Figure 4-9. The output currents are as indicated.

GUID-B7A2CE89-D943-42A6-88C1-6842B7001A7F-low.gifFigure 4-7 TPS563202EVM Output Voltage Ripple, IOUT = 3 A

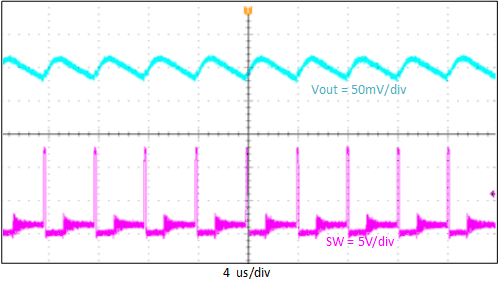

GUID-5ADB295F-25FE-4458-BE36-A906BF1AADF6-low.gifFigure 4-8 TPS563202EVM Output Voltage Ripple, IOUT = 300 mA
GUID-FF56E1D4-ED14-4486-9E03-CE7E5028E3BF-low.gifFigure 4-9 TPS563202EVM Output Voltage Ripple, IOUT = 10 mA
