4.6 Load Transient Response

The TPS562207EVM response to load transient is shown in Figure 4-6. The current steps and slew rates are indicated in the figures. Total peak-to-peak voltage variation is as shown.

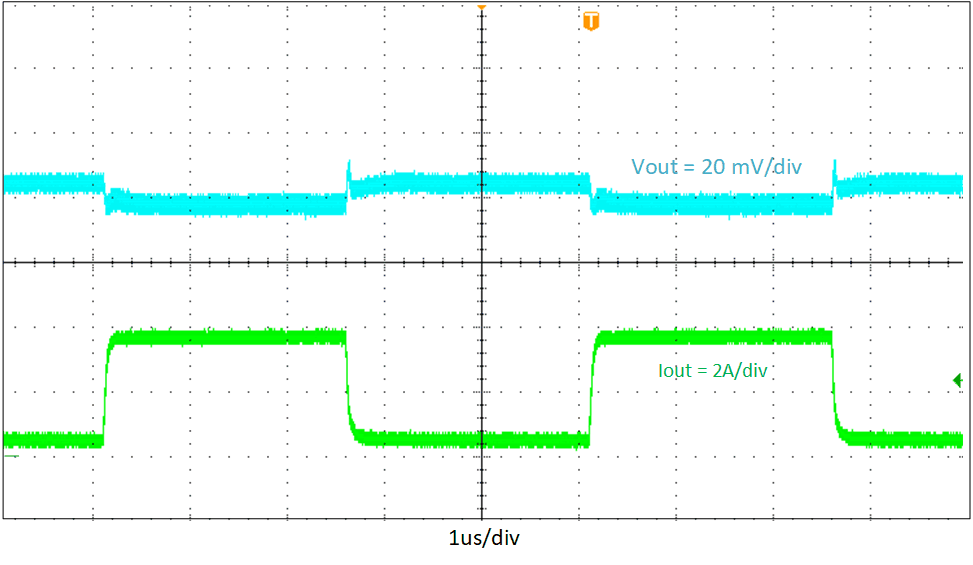

GUID-E182E586-45FE-4151-BCE9-C653CBE52D8F-low.gifFigure 4-6 TPS562207EVM Load Transient Response, 10% to 90% Load Step
