4.9 Start-Up

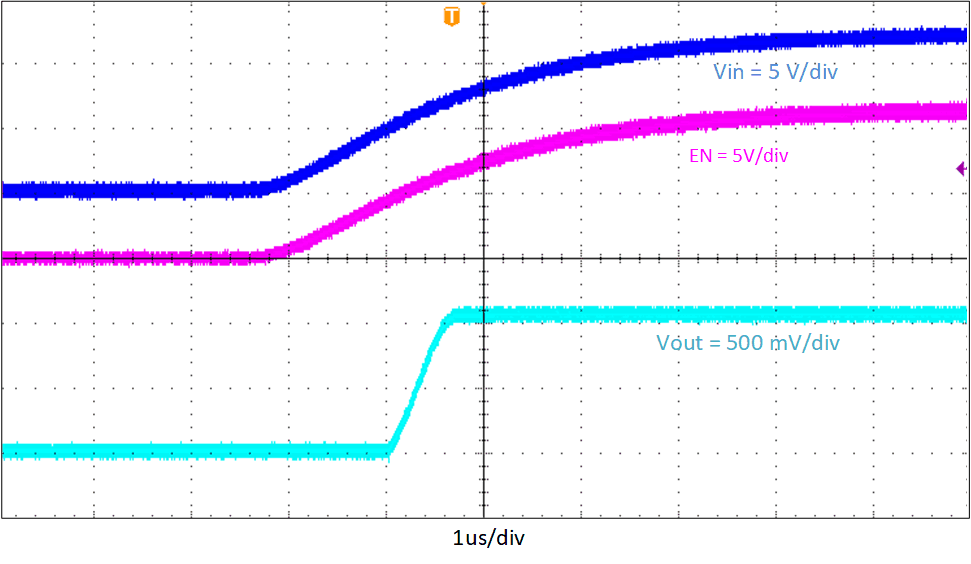

The TPS562207EVM start-up waveform relative to VIN is shown in Figure 4-10. Load = 2A.

GUID-CED9DF35-FB9D-4769-82CD-00F62B02DF2B-low.gifFigure 4-10 TPS562207EVM Start-Up Relative to VIN

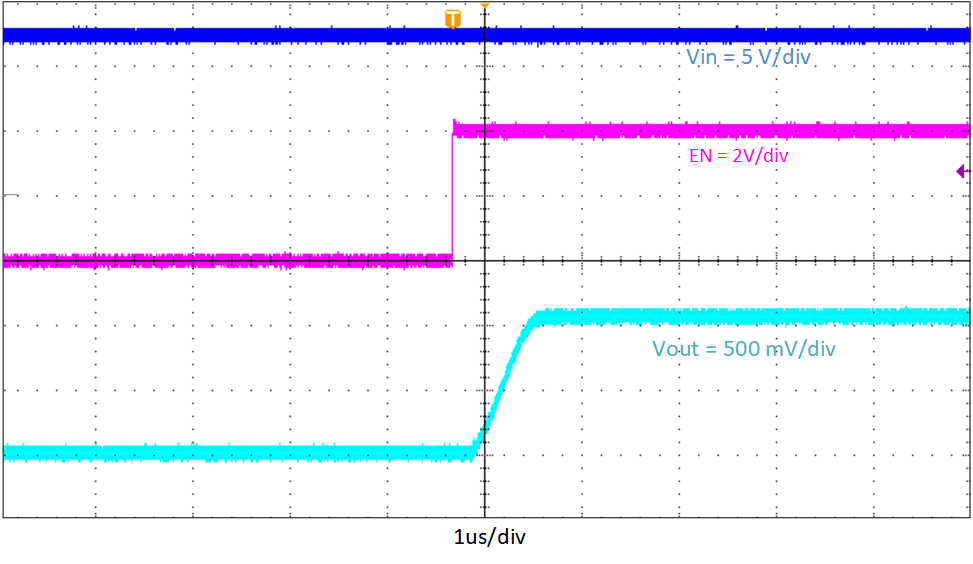

The TPS562207EVM start-up waveform relative to enable (EN) is shown in Figure 4-11. Load = 2 A.

GUID-287351B4-7CAE-4B01-93B6-794575E9C819-low.gifFigure 4-11 TPS562207EVM Start-Up Relative to EN
