4.3 Start-Up

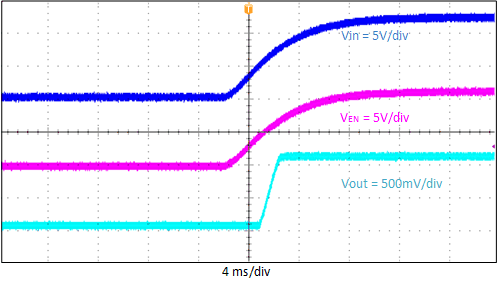

The TPS562202EVM start-up waveform relative to VIN is shown in Figure 4-2.

GUID-20200819-CA0I-4H9N-LLPQ-92GXGVFDZLB2-low.gif Figure 4-2 Start-Up Relative to VIN, IOUT = 2 A

The TPS562202EVM start-up waveform relative to enable (EN) is shown in Figure 4-3.

GUID-20200819-CA0I-DWFJ-XSHK-WJ5Q9D3HZTSN-low.gif Figure 4-3 Start-Up Relative to EN, IOUT = 2 A
