4.1 BMS034 Board Layout

Figure 4-1 through Figure 4-4 show the board layout for the BQ2579XEVMs.

GUID-7791DA5E-0455-4CEF-BDC5-47AC0CF01BE8-low.gif Figure 4-1 BMS034A/B Top Layer
GUID-E3AC29E5-0BCB-4CA5-8FB0-6C0E758CB3C5-low.gif Figure 4-2 BMS034A/B Signal Layer 1
GUID-B3432F70-BFB0-4E9E-BCD3-D435BC0952DE-low.gif Figure 4-3 BMS034A/B Signal Layer 2

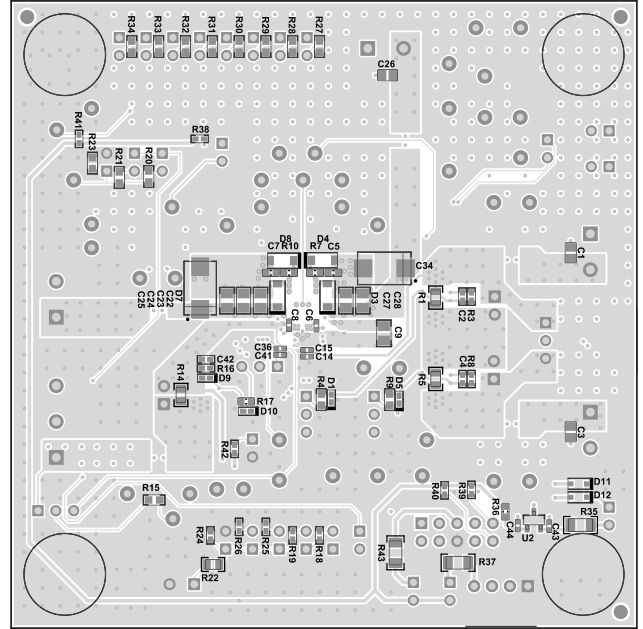

GUID-1312623A-295A-47BC-963D-E9AA9FFB6C8B-low.gif Figure 4-4 BMS034A/B Bottom Layer
