5.9 Shutdown

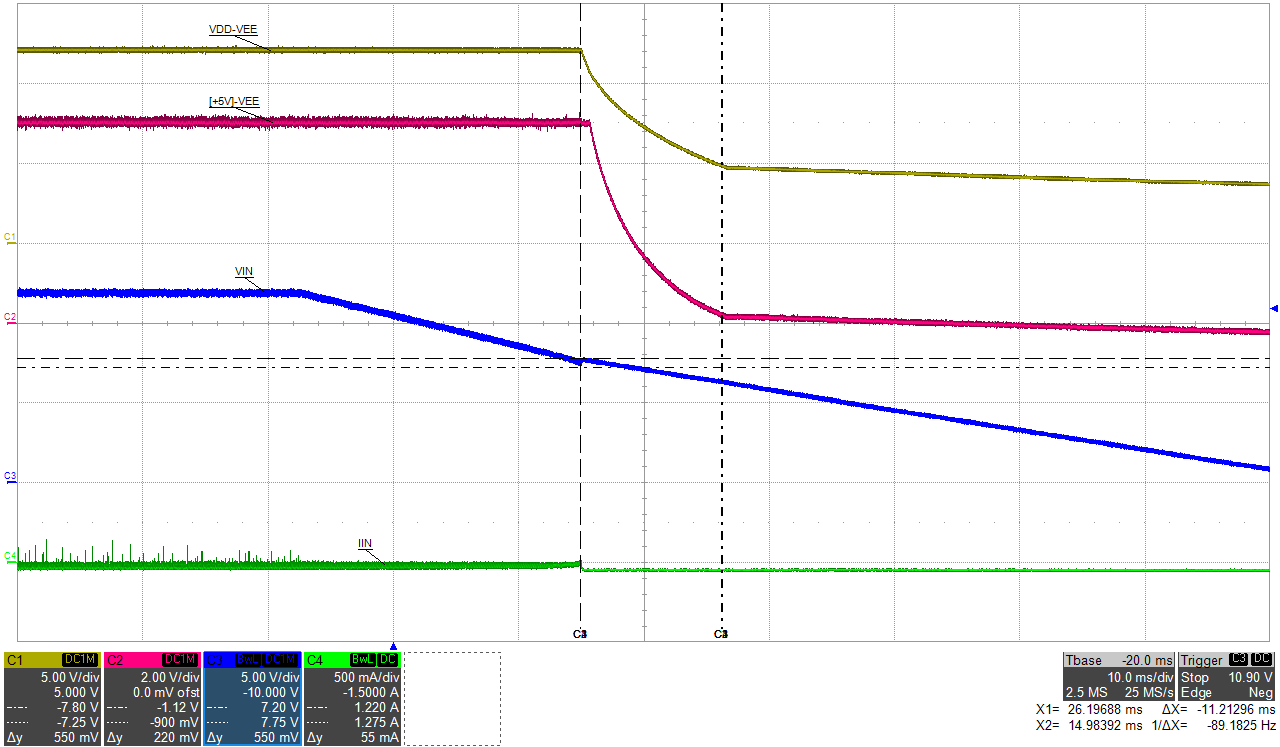

Note: VDD, VEE, and [+5V], etc., refer to Table 4-1 and Figure 4-1.
top: VDD-VEE, 5 V/div,bot: IIN, 1 A/div,
mid-1: [+5V]-VEE, 2 V/div, time = 10 ms/div
mid-2: VIN, 5 V/div,
Figure 5-21 Shutdown by VIN Removal: VINOFF = 7.2 V, IVDD = 0 mA, I[+5V] = 0 mA
Note: VDD, VEE, and [+5V], etc., refer to Table 4-1 and Figure 4-1.
top: VDD-VEE, 5 V/div,bot: IIN 0.5A/div,
mid-1: [+5V]-VEE, 2 V/div, time = 2 ms/div
mid-2: EN, 5 V/div,
Figure 5-22 Shutdown by EN Low: VIN = 12 V, IVDD = 130 mA, I[+5V] = 10 mA
