4.9 Start-Up

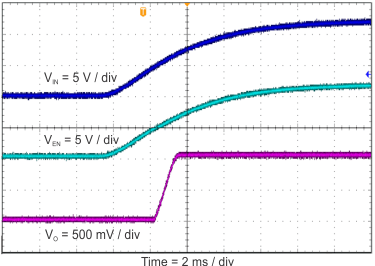

The TPS563201EVM-715 start-up waveform relative to VIN is shown in Figure 4-10. Load = 1 Ω resistive.

The TPS563201EVM-715 start-up waveform relative to enable (EN) is shown in Figure 4-11. Load = 1 Ω resistive.

GUID-23952662-0E48-4D3C-B0B5-CD7F87DEC502-low.gifFigure 4-10 Start-Up Relative to VIN
GUID-3409A11C-4C73-411E-A581-35FEDEE1A6F0-low.gifFigure 4-11 Start-Up Relative to EN
