2 EVM Description

The LMX2594 is populated on a 4-layer PCB. This brief description should help you use the EVM:

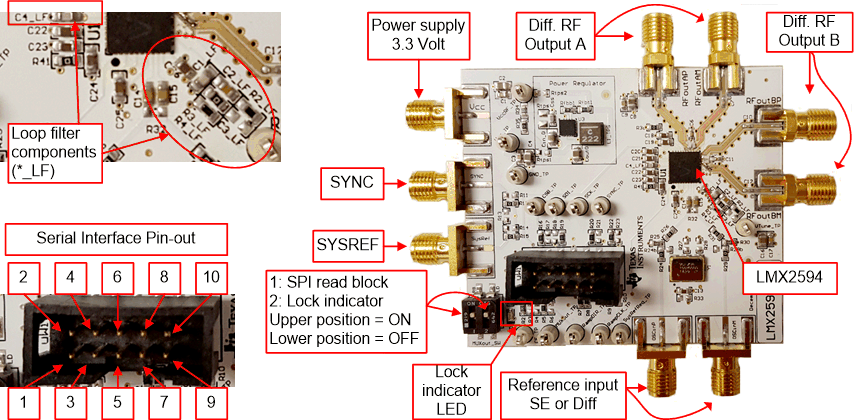

GUID-BEA3CC8B-B0EF-46EF-85CF-03445B5A3E33-low.gif Figure 2-1 LMX2594EVM Description

The serial interface pin description is shown in Table 2-1.

Table 2-1 Serial Interface Connector Description
NO. NAME
1 RAMPDIR and CE (Choose with Resistors on Board)
2 CSB
3 MUXout
4 SDI
5 Not Used
6 GND
7 RampCLK
8 SCK
9 SysRefReq
10 SYNC
