5.8 Typical Characteristics

This section describes the DP83825 Drive characteristics for VDDIO 3.3V and 1.8V.

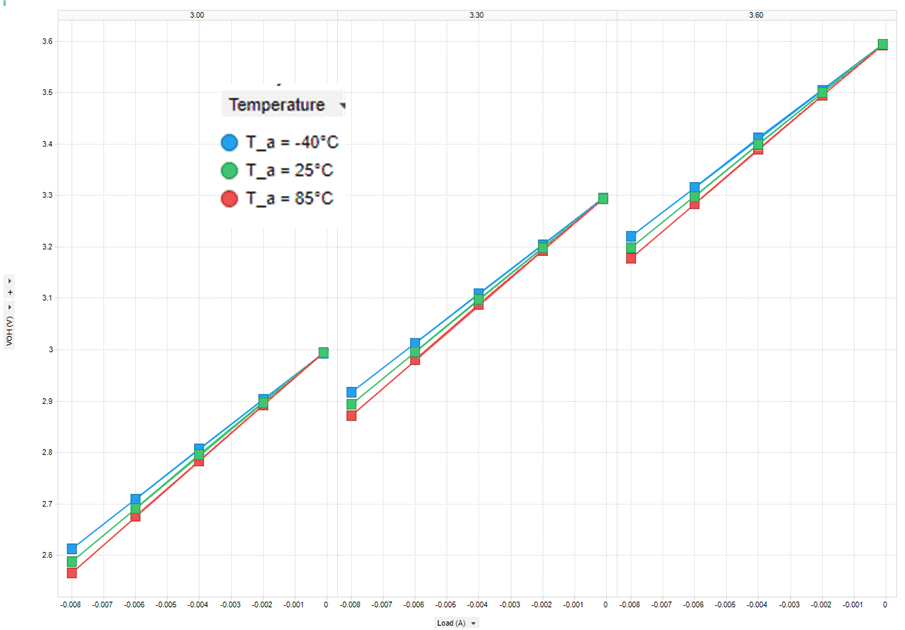

DP83825I LED_0, LED_2, CLKOUT VOH 3.3VFigure 5-6 LED_0, LED_2, CLKOUT VOH 3.3V
DP83825I LED_0, LED_2, CLKOUT VOL 3.3VFigure 5-7 LED_0, LED_2, CLKOUT VOL 3.3V
DP83825I LED_0, LED_2, CLKOUT VOH 1.8VFigure 5-8 LED_0, LED_2, CLKOUT VOH 1.8V
DP83825I LED_0, LED_2, CLKOUT VOL 1.8VFigure 5-9 LED_0, LED_2, CLKOUT VOL 1.8V
