3.4.2 ALP Does Not Detect the EVM

If the following window opens after starting the ALP software, double check the hardware setup.

GUID-34C52E6D-D13E-4B11-8724-F44C42AE6A98-low.gifFigure 3-20 ALP No Devices Error

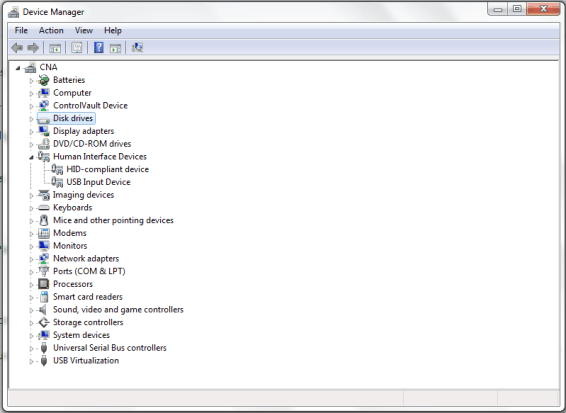

It may also be that the USB2ANY driver is not installed. Check the device manager. There should be a HID-compliant device under the Human Interface Devices as shown below.

GUID-0C514977-E074-4F31-8F94-1EB0FBCE7CC1-low.gifFigure 3-21 Windows 7, ALP USB2ANY Driver

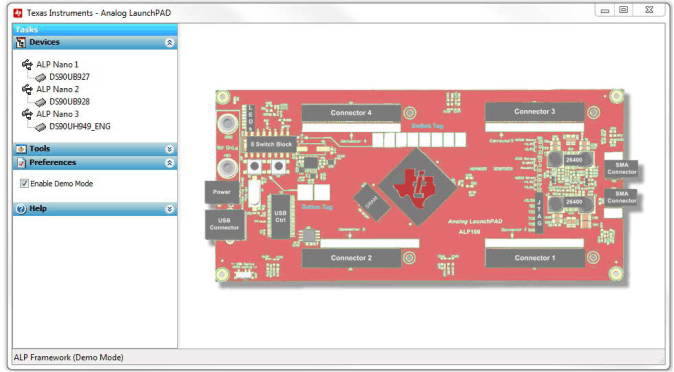

The software should start with only DS90UB95x in the Devices drop-down menu. If there are more devices then the software is most likely in demo mode. When the ALP is operating in demo mode there is a (Demo Mode) indication in the lower left of the application status bar as shown below.

GUID-8F05BA52-EE68-4937-94FF-D993E68263BC-low.gifFigure 3-22 ALP in Demo Mode

Disable the demo mode by selecting the Preferences drop-down menu and unchecking Enable Demo Mode.

GUID-5342BDD0-EF60-46DF-BCAF-197CDBD71214-low.gifFigure 3-23 ALP Preferences Menu

After demo mode is disabled, the ALP software will poll the ALP hardware. The ALP software will update and have only DS90UB95x under the Devices drop-down menu.
