6 Typical Characteristics

TA = 25°C, VS = 5V, RPULLUP = 2.5k, CL = 15pF, VCM = 0V, VUNDERDRIVE = 100mV, VOVERDRIVE = 100mV unless otherwise noted.

TLV4H290-SEP TLV4H390-SEP Supply Current vs. Supply VoltageFigure 6-1 Supply Current vs. Supply Voltage
TLV4H290-SEP TLV4H390-SEP Input Bias Current vs. TemperatureFigure 6-3 Input Bias Current vs. Temperature
TLV4H290-SEP TLV4H390-SEP Output Sourcing Current vs. Output Voltage, 1.8VFigure 6-5 Output Sourcing Current vs. Output Voltage, 1.8V

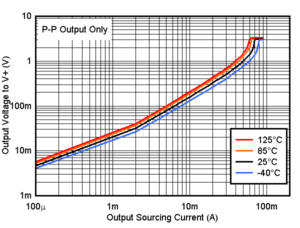

TLV4H290-SEP TLV4H390-SEP Output Sourcing Current vs. Output Voltage, 3.3VFigure 6-7 Output Sourcing Current vs. Output Voltage, 3.3V
TLV4H290-SEP TLV4H390-SEP Output Sourcing Current vs. Output Voltage, 5VFigure 6-9 Output Sourcing Current vs. Output Voltage, 5V
TLV4H290-SEP TLV4H390-SEP Sourcing Short Circuit Current vs. TemperatureFigure 6-11 Sourcing Short Circuit Current vs. Temperature
TLV4H290-SEP TLV4H390-SEP Falltime vs. Capacitive LoadFigure 6-13 Falltime vs. Capacitive Load
TLV4H290-SEP TLV4H390-SEP Propagation Delay, Low to High, 1.8VFigure 6-15 Propagation Delay, Low to High, 1.8V
TLV4H290-SEP TLV4H390-SEP Propagation Delay, Low to High, 3.3VFigure 6-17 Propagation Delay, Low to High, 3.3V
TLV4H290-SEP TLV4H390-SEP Propagation Delay, Low to High, 5VFigure 6-19 Propagation Delay, Low to High, 5V
TLV4H290-SEP TLV4H390-SEP Offset Voltage vs. Common-Mode at 25°C, 5VFigure 6-21 Offset Voltage vs. Common-Mode at 25°C, 5V
TLV4H290-SEP TLV4H390-SEP Offset Voltage vs. Supply Voltage at 125°C, VIN=V-Figure 6-23 Offset Voltage vs. Supply Voltage at 125°C, VIN=V-
TLV4H290-SEP TLV4H390-SEP Offset Voltage vs. Supply Voltage at -40°C, VIN=V-Figure 6-25 Offset Voltage vs. Supply Voltage at -40°C, VIN=V-
TLV4H290-SEP TLV4H390-SEP Supply Current vs. TemperatureFigure 6-2 Supply Current vs. Temperature
TLV4H290-SEP TLV4H390-SEP Output Sinking Current vs. Output Voltage, 1.8VFigure 6-4 Output Sinking Current vs. Output Voltage, 1.8V
TLV4H290-SEP TLV4H390-SEP Output Sinking Current vs. Output Voltage, 3.3VFigure 6-6 Output Sinking Current vs. Output Voltage, 3.3V
TLV4H290-SEP TLV4H390-SEP Output Sinking Current vs. Output Voltage, 5VFigure 6-8 Output Sinking Current vs. Output Voltage, 5V
TLV4H290-SEP TLV4H390-SEP Sinking Short Circuit Current vs. TemperatureFigure 6-10 Sinking Short Circuit Current vs. Temperature
TLV4H290-SEP TLV4H390-SEP Risetime vs. Capacitive LoadFigure 6-12 Risetime vs. Capacitive Load
TLV4H290-SEP TLV4H390-SEP Propagation Delay, High to Low, 1.8VFigure 6-14 Propagation Delay, High to Low, 1.8V
TLV4H290-SEP TLV4H390-SEP Propagation Delay, High to Low, 3.3VFigure 6-16 Propagation Delay, High to Low, 3.3V
TLV4H290-SEP TLV4H390-SEP Propagation Delay, High to Low, 5VFigure 6-18 Propagation Delay, High to Low, 5V
TLV4H290-SEP TLV4H390-SEP Offset Voltage vs. Common-Mode at 125°C, 5VFigure 6-20 Offset Voltage vs. Common-Mode at 125°C, 5V
TLV4H290-SEP TLV4H390-SEP Offset Voltage vs. Common-Mode at -40°C, 5VFigure 6-22 Offset Voltage vs. Common-Mode at -40°C, 5V
TLV4H290-SEP TLV4H390-SEP Offset Voltage vs. Supply Voltage at 25°C, VIN=V-Figure 6-24 Offset Voltage vs. Supply Voltage at 25°C, VIN=V-
