6 Dead-Band Submodule Differences

The Dead-Band Submodule creates dead time between edges of complementary PWM outputs, and inverts and swaps PWM outputs as needed. The feature differences of the MCPWM Dead-Band submodule when compared to EPWM are as follows:

  • Dead-band settings shared across all three PWM pairs within an MCPWM module. This is due to the MCPWM's intended use to drive a 3-phase motor by six PWM channels where the PWM configurations for each channel pair are nearly identical.
  • Addition of memory-mapped shadow registers for DBRED, DBFED
  • Half-cycle clocking mode removed from MCPWM since HRPWM is not present
Dead-Band Submodule Block Diagram for EPWM Figure 6-1 Dead-Band Submodule Block Diagram for EPWM

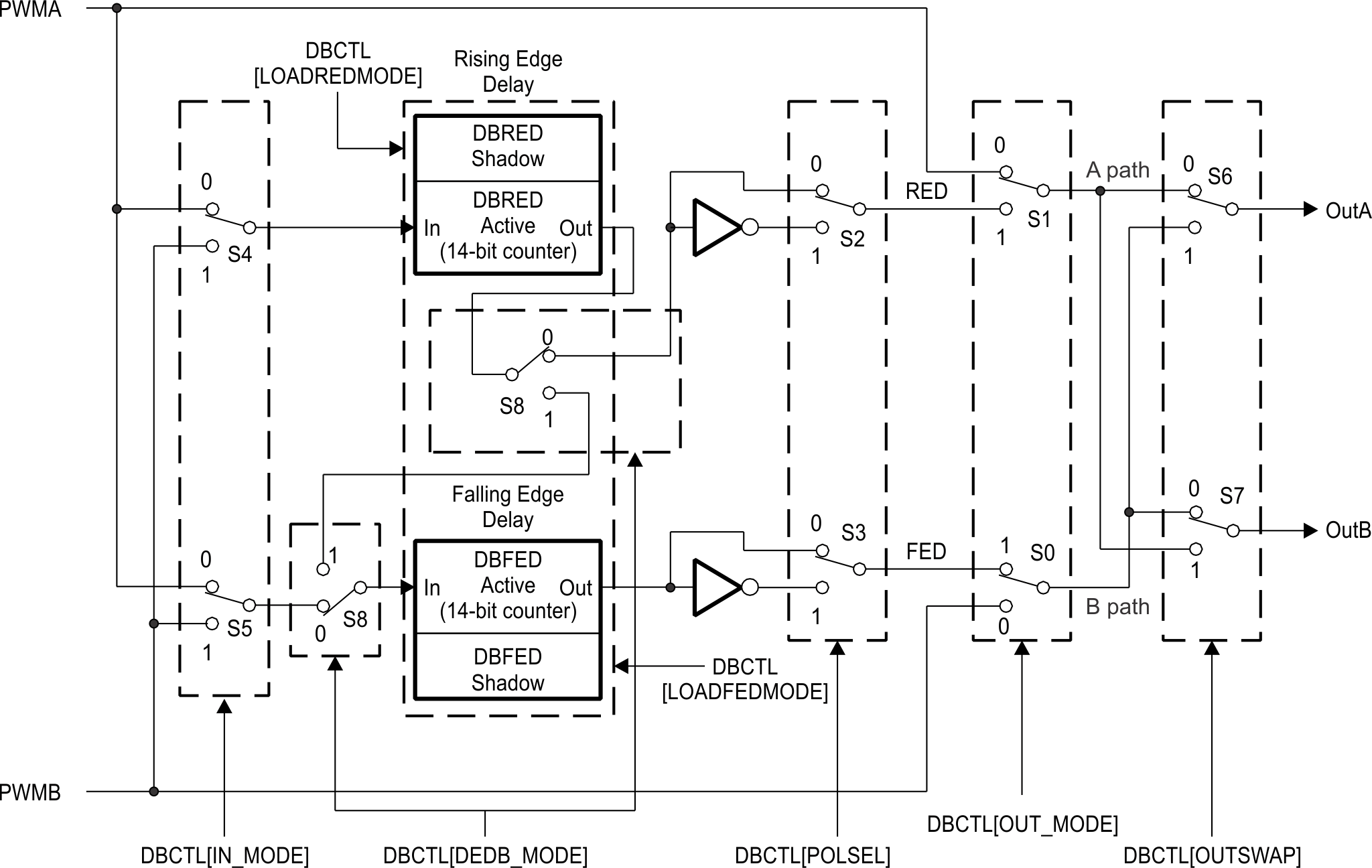

Dead-Band Submodule Block Diagram for MCPWM Figure 6-2 Dead-Band Submodule Block Diagram for MCPWM
