Agitation Cycle

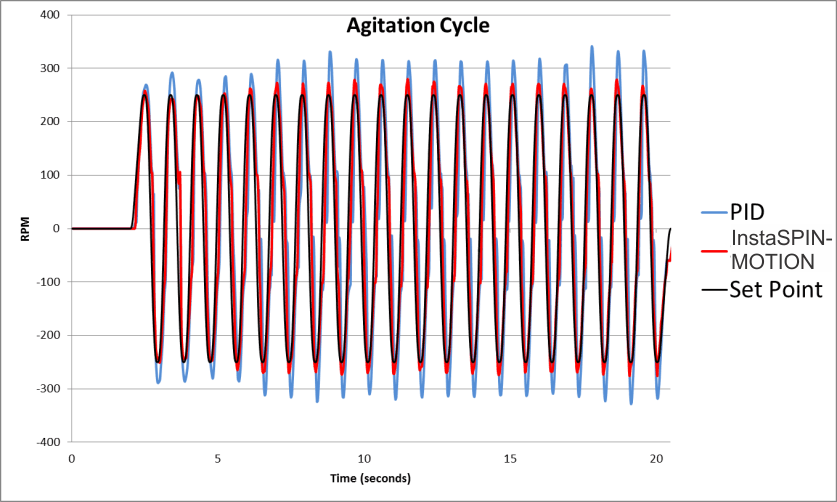

During agitation, the motor switched between the 250 rpm and -250 rpm setpoints 20 times. The results, shown in Figure 5-2, demonstrate that InstaSPIN-MOTION more closely matched the reference profile. Additionally, the maximum error for PI was 91 rpm (341 - 250 = 91 rpm); whereas, the maximum error for SpinTAC was 30 rpm (280 - 250 = 30 rpm).

GUID-0D5CC5C6-9271-49DA-9AED-FB8856060179-low.gif Figure 4-2 InstaSPIN-MOTION Minimizes Error
