3.1 Hardware Requirements

Figure 3-1 illustrates the schematic and board connections of TIDA-060040.

GUID-20220208-SS0I-8PVR-XT7V-ZDWR8CNSWSSJ-low.gifFigure 3-1 TIDA-060040 Schematic

The J1 and J2 board connector was configured for compatibility with TI-SCB (SENS077).

Table 3-1 J1 and J2 Pin Connection Summary
PINSIGNAL
1nCS
2Not Used
3SCLK
4GND
5Controller Out Peripheral In
63.3 V
7Controller In Peripheral Out
8Not Used
9Alert
10Not Used
11Not Used
12Not Used

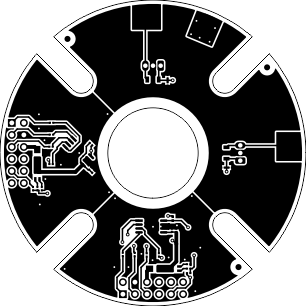

Figure 3-2 shows the layout of TIDA-060040.

GUID-20220208-SS0I-KBGP-4S57-HV34FPVWG3TG-low.gifFigure 3-2 TIDA-060040 Layout

This layout may be used or adjusted as needed to suit any magnet and motor geometry. While this design includes options for TMAG5170 orthogonal, TMAG5170 at 45° rotation, and DRV5055, it is likewise possible to reduce the PCB layout for a single sensor option as desired.
