   TMS57014A

[description] [block diagram]
[key features] [applications]
Also Available : (In .pdf Format)
[data sheet]


DESCRIPTION
The TMS57014A is a dual DAC using sigma-delta architecture. This product features two separate DAC channels with a common serial data interface.

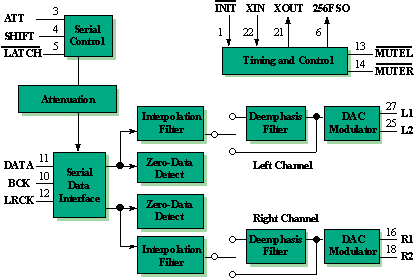

BLOCK DIAGRAM


KEY FEATURES
  • Sample rates up to 48 kHz
  • Deemphasis filter for 32, 37.8, 44.1, and 48 kHz
  • Digital soft mute to -60 dB
  • Single 5-V DC supply
  • 18-bit resolution
  • Mute capability with zero data format
  • 2s-complement data format
  • Pulse-width-modulation (PWM) output
  • Serial port interface

APPLICATIONS
  • Digital audio systems
  • Professional quality audio
  • High-performance, audio-speed DAC
  • Waveform generation
  • Automated test systems
