6.9.5.13.3 GPMC and NAND Flash — Asynchronous Mode

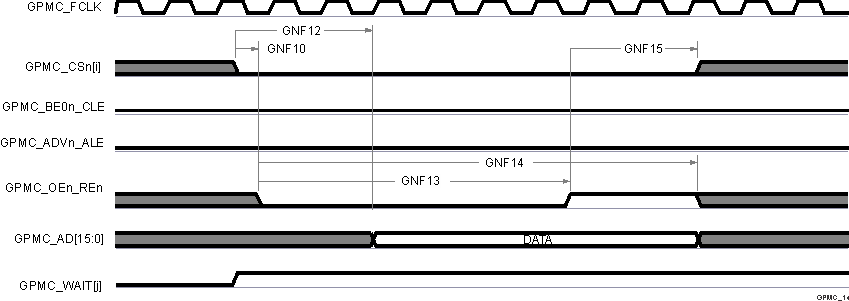

Table 6-69 and Table 6-70 present timing requirements and switching characteristics for GPMC and NAND Flash — Asynchronous Mode.

Table 6-69 GPMC and NAND Flash Timing Requirements – Asynchronous Mode see Figure 6-60
NO. PARAMETER DESCRIPTION MODE(4) MIN MAX UNIT
133MHz
GNF12(1) tacc(d) Access time, input data GPMC_AD[15:0](3) div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 J(2) ns
(1) The GNF12 parameter illustrates the amount of time required to internally sample input data. It is expressed in number of GPMC functional clock cycles. From start of the read cycle and after GNF12 functional clock cycles, input data is internally sampled by the active functional clock edge. The GNF12 value must be stored inside AccessTime register bit field.
(2) J = AccessTime × (TimeParaGranularity + 1) × GPMC_FCLK(3)
(3) GPMC_FCLK is general-purpose memory controller internal functional clock period in ns.
(4) For div_by_1_mode:
  • GPMC_CONFIG1_i Register: GPMCFCLKDIVIDER = 0h:
    • GPMC_CLK frequency = GPMC_FCLK frequency

For GPMC_FCLK_MUX:
  • CTRLMMR_GPMC_CLKSEL[1-0] CLK_SEL = 00 = CPSWHSDIV_CLKOUT3 = 2000/15 = 133.33MHz

For TIMEPARAGRANULARITY_X1:
  • GPMC_CONFIG1_i Register: TIMEPARAGRANULARITY = 0h = x1 latencies (affecting RD/WRCYCLETIME, RD/WRACCESSTIME, PAGEBURSTACCESSTIME, CSONTIME, CSRD/WROFFTIME, ADVONTIME, ADVRD/WROFFTIME, OEONTIME, OEOFFTIME, WEONTIME, WEOFFTIME, CYCLE2CYCLEDELAY, BUSTURNAROUND, TIMEOUTSTARTVALUE, WRDATAONADMUXBUS)
Table 6-70 GPMC and NAND Flash Switching Characteristics – Asynchronous Mode see Figure 6-58, Figure 6-59, Figure 6-60 and Figure 6-61
NO. PARAMETER MODE(4) MIN MAX UNIT
GNF0 tw(wenV) Pulse duration, output write enable GPMC_WEn valid div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 A ns
GNF1 td(csnV-wenV) Delay time, output chip select GPMC_CSn[i](2) valid to output write enable GPMC_WEn valid div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 B - 2 B + 2 ns
GNF2 tw(cleH-wenV) Delay time, output lower-byte enable and command latch enable GPMC_BE0n_CLE high to output write enable GPMC_WEn valid div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 C - 2 C + 2 ns
GNF3 tw(wenV-dV) Delay time, output data GPMC_AD[15:0] valid to output write enable GPMC_WEn valid div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 D - 2 D + 2 ns
GNF4 tw(wenIV-dIV) Delay time, output write enable GPMC_WEn invalid to output data GPMC_AD[15:0] invalid div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 E - 2 E + 2 ns
GNF5 tw(wenIV-cleIV) Delay time, output write enable GPMC_WEn invalid to output lower-byte enable and command latch enable GPMC_BE0n_CLE invalid div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 F - 2 F + 2 ns
GNF6 tw(wenIV-CSn[i]V) Delay time, output write enable GPMC_WEn invalid to output chip select GPMC_CSn[i](2) invalid div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 G - 2 G + 2 ns
GNF7 tw(aleH-wenV) Delay time, output address valid and address latch enable GPMC_ADVn_ALE high to output write enable GPMC_WEn valid div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 C - 2 C + 2 ns
GNF8 tw(wenIV-aleIV) Delay time, output write enable GPMC_WEn invalid to output address valid and address latch enable GPMC_ADVn_ALE invalid div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 F - 2 F + 2 ns
GNF9 tc(wen) Cycle time, write div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 H ns
GNF10 td(csnV-oenV) Delay time, output chip select GPMC_CSn[i](2) valid to output enable GPMC_OEn_REn valid div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 I - 2 I + 2 ns
GNF13 tw(oenV) Pulse duration, output enable GPMC_OEn_REn valid div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 K ns
GNF14 tc(oen) Cycle time, read div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 L ns
GNF15 tw(oenIV-CSn[i]V) Delay time, output enable GPMC_OEn_REn invalid to output chip select GPMC_CSn[i](2) invalid div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 M - 2 M + 2 ns
(2) In GPMC_CSn[i], i is equal to 0, 1, 2 or 3.
(3) GPMC_FCLK is general-purpose memory controller internal functional clock period in ns.
(4) For div_by_1_mode:
  • GPMC_CONFIG1_i Register: GPMCFCLKDIVIDER = 0h:
    • GPMC_CLK frequency = GPMC_FCLK frequency

For GPMC_FCLK_MUX:
  • CTRLMMR_GPMC_CLKSEL[1-0] CLK_SEL = 00 = CPSWHSDIV_CLKOUT3 = 2000/15 = 133.33MHz

For TIMEPARAGRANULARITY_X1:
  • GPMC_CONFIG1_i Register: TIMEPARAGRANULARITY = 0h = x1 latencies (affecting RD/WRCYCLETIME, RD/WRACCESSTIME, PAGEBURSTACCESSTIME, CSONTIME, CSRD/WROFFTIME, ADVONTIME, ADVRD/WROFFTIME, OEONTIME, OEOFFTIME, WEONTIME, WEOFFTIME, CYCLE2CYCLEDELAY, BUSTURNAROUND, TIMEOUTSTARTVALUE, WRDATAONADMUXBUS)
AM67 AM67A GPMC and NAND Flash — Command Latch Cycle
A. In GPMC_CSn[i], i is equal to 0, 1, 2 or 3.
Figure 6-58 GPMC and NAND Flash — Command Latch Cycle
AM67 AM67A GPMC and NAND Flash — Address Latch Cycle
A. In GPMC_CSn[i], i is equal to 0, 1, 2 or 3.
Figure 6-59 GPMC and NAND Flash — Address Latch Cycle
AM67 AM67A GPMC and NAND Flash — Data Read Cycle
A. GNF12 parameter illustrates amount of time required to internally sample input data. It is expressed in number of GPMC functional clock cycles. From start of read cycle and after GNF12 functional clock cycles, input data will be internally sampled by active functional clock edge. GNF12 value must be stored inside AccessTime register bits field.
B. GPMC_FCLK is an internal clock (GPMC functional clock) not provided externally.
C. In GPMC_CSn[i], i is equal to 0, 1, 2 or 3. In GPMC_WAIT[j], j is equal to 0 or 1.
Figure 6-60 GPMC and NAND Flash — Data Read Cycle
AM67 AM67A GPMC and NAND Flash — Data Write Cycle
A. `In GPMC_CSn[i], i is equal to 0, 1, 2 or 3.
Figure 6-61 GPMC and NAND Flash — Data Write Cycle
